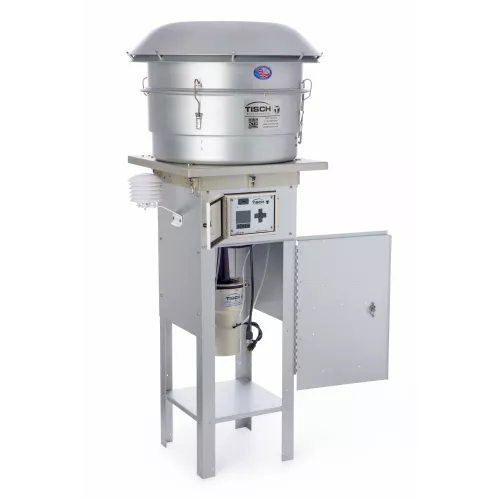

PM10,VFC PLUS, Brush,110V SKU: TE-6070VFC+

TE-6070VFC is a high volume air sampler configured for PM10 Particulate sampling.

Designed to collect particulate matter with an aerodynamic diameter of 10 µm or less using a size-selective inlet for PM10 monitoring. PLUS technology uses a microprocessor-based controller with built-in ambient temperature and barometric pressure sensors for accurate, real-time flow control, plus auto calibration and onboard data logging.

• Includes a digital timer for straightforward programming and repeatable sampling periods.
• A brushed motor provides a proven, field-ready drive system widely used in hi-vol sampling applications.
• Power configuration: 110V, 60Hz.
• The PLUS controller includes a built-in digital timer with battery backup, multiple elapsed time indicators, four data logs, and USB export for retrieval. Data logs capture average, minimum, and maximum ambient temperature and barometric pressure, along with total ambient and standard flow.

Use this configuration when you need reliable, high-volume collection with an easy-to-operate control package.

Controller Type

VFC PLUS

Motor Type

Brush

Power Configuration

110volt, 60hz

Sample Type

PM10

Timer Type

Digital

Uses PLUS tech?

Yes
