PUF,PLUS,Brush,220v, 50Hz SKU: TE-PUFPLUSX

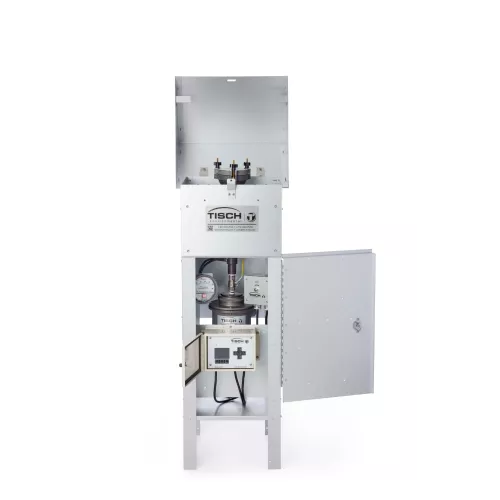

TE-PUFPLUSX is a high volume air sampler configured for PUF (Polyurethane Foam) VOC and pesticide sampling.

Designed to collect both airborne particulates and vapor-phase contaminants using a dual sampling module with polyurethane foam media. PLUS technology uses a microprocessor-based controller with built-in ambient temperature and barometric pressure sensors for accurate, real-time flow control, plus auto calibration and onboard data logging.

• Includes a digital timer for straightforward programming and repeatable sampling periods.
• A brushed motor provides a proven, field-ready drive system widely used in hi-vol sampling applications.
• Power configuration: 220V, 50Hz.
• The PLUS controller includes a built-in digital timer with battery backup, multiple elapsed time indicators, four data logs, and USB export for retrieval. Data logs capture average, minimum, and maximum ambient temperature and barometric pressure, along with total ambient and standard flow.

Use this configuration when you need reliable, high-volume collection with an easy-to-operate control package.

Controller Type

PUF PLUS

Motor Type

Brush

Power Configuration

220volt, 50hz

Sample Type

PUF

Timer Type

Digital

Uses PLUS tech?

Yes
