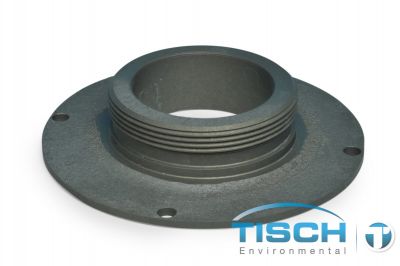

TE-1004-1 Motor Flange for PUF Housing Assembly
The TE-1004-1 Motor Flange is a critical mounting component designed specifically for PUF (Polyurethane Foam) sampling systems that meet EPA methods TO-4A, TO-9A, and TO-13A requirements. This precision-machined flange provides the secure connection interface between the motor assembly and the PUF housing in high volume air samplers that collect airborne particulate and vapor contaminants, including volatile organic compounds and airborne pesticides.
System Integration
The TE-1004-1 flange integrates with the complete TE-1004 motor assembly system in PUF samplers. The motor assembly is durable and has a long life if maintained properly, requiring routine maintenance including inspecting and replacing the motor flange gasket and motor cushion. This flange works in conjunction with the TE-1004-2 flange gasket to ensure proper sealing and optimal system performance.
Compatibility
This motor flange is specifically engineered for use with:
- TE-1004 110V Brush Style Blower Motor assemblies
- TE-1004X 220V Brush Style Motor assemblies
- TE-1004-BL Brushless Motor assemblies for PUF systems
- TE-1004-3 PUF Motor Housing (housing component)
- Complete TE-1000 PUF sampling systems
Maintenance Requirements
Regular inspection of the motor flange gasket is essential for proper system operation. The flange is accessible by removing the Motor Mounting Cover and its four mounting bolts, which exposes the flange gasket and motor. Proper flange maintenance ensures leak-free operation critical for accurate flow measurement in EPA-compliant sampling.
Applications
Essential component for high volume air samplers classified for collection of airborne volatile organic compounds and particulate matter, operating between 125-250 lpm. Used in environmental monitoring applications including:
- Ambient air quality monitoring for organochlorine pesticides
- PCB and dioxin sampling programs
- Industrial emission monitoring
- Research applications requiring EPA TO-series method compliance
The TE-1004-1 Motor Flange ensures reliable, leak-free motor mounting essential for maintaining the precise flow control required in EPA-compliant PUF sampling systems.
