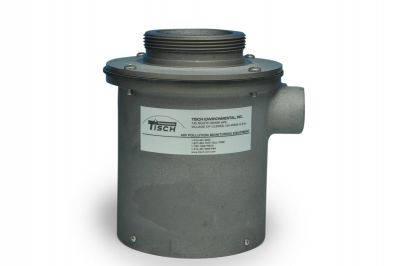

TE-1004X 220V Brush Style Motor Assembly for PUF Systems SKU: TE-1004X

The TE-1004X is a 220-volt brush-style aluminum blower motor assembly specifically designed for PUF (Polyurethane Foam) high volume air sampling systems. This motor assembly provides the critical airflow required for sampling in accordance with EPA Method TO-4 for the determination of organochlorine pesticides and polychlorinated biphenyls in ambient air.

Technical Operation

The TE-1004X features a brush-style universal motor design that operates on 220-volt electrical supply. Air flow rates are infinitely variable up to 280 liters per minute, with voltage variator adjusting screw altering the blower motor speed to achieve the desired flow rate. An electrical source of 110 volts, 15 amps is required for the 110-volt version, while this 220-volt model requires appropriate international power supply.

Maintenance Requirements

This brush-style motor requires regular maintenance for optimal performance. Motor brushes should be changed every 500 hours of operation, and the motor should be replaced after 2 brush changes. Blower motor brushes should be inspected frequently and replaced before expending. TE-5075 brush break-in device allows for the 50% voltage during initial brush conditioning.

System Compatibility

The TE-1004X motor assembly is compatible with multiple PUF sampling systems including:

• TE-PNY1123 Mass Flow Controlled PUF High Volume Air Sampler
• TE-1000 PUF (Poly-Urethane Foam) Monitor systems
• Other Tisch Environmental PUF sampling configurations requiring 220-volt operation

This motor assembly works in conjunction with TE-5001 Anodized Aluminum Shelter, TE-5004 8"x10" Stainless Steel Filter Holder with probe hole, and TE-300-310 Mass Flow Controller to create complete sampling systems.

Applications

The TE-1004X supports critical environmental monitoring applications including:

• Sampling of semi-volatile organic compounds
• Sampling airborne particulates and vapor contamination from pesticide compounds
• Collection of organochlorine and organophosphate pesticides
• Ambient air monitoring to determine suspended particulate levels relative to air quality standards

For the 110-volt version of this motor assembly, reference TE-1004. Tisch Environmental also offers brushless motor alternatives including TE-1004X-BL for 220-volt applications where reduced maintenance is preferred.
