TE-106 Flow Recording Charts for Hi-Vol Air Samplers, 4" Diameter, 24-Hour Period

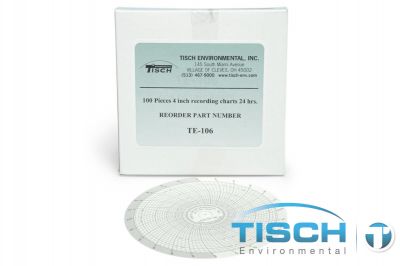

TE-106 charts are 4-inch flow recording charts designed for 24-hour monitoring periods with high volume air samplers. These charts provide a permanent written record of pressure variations over a 24-hour sampling period, documenting flow rate performance to verify EPA compliance throughout the sampling cycle. Each box contains 100 individual charts for extended operational capability.
Flow Monitoring Documentation
The chart recorder attaches to the motor back pressure tap and continuously records pressure variations on the 4-inch circular chart format. This pressure data enables operators to verify that the sampler maintained consistent flow rates throughout the 24-hour sampling period, which is critical for accurate particulate concentration calculations and regulatory compliance.
Compatibility
TE-106 charts are compatible with Tisch Environmental's continuous flow/pressure recorders used in:
- TE-5000 High Volume TSP samplers with TE-5009 continuous flow recorder
- TE-5170-V Volumetric Flow Controlled (VFC) systems
- TE-6070V PM10 samplers with flow/pressure recorder (TE-5009)
- TE-5170DV-BL TSP VFC systems with 24-hour chart recorder TE-5009
Replacement Schedule
Replace charts after each 24-hour sampling period to maintain accurate documentation. Each chart accommodates one complete 24-hour sampling cycle. For continuous monitoring operations, operators typically install a fresh chart before each scheduled sampling event. Used charts should be retained as part of the sampling documentation required for EPA compliance reporting.
Applications
Essential consumable for ambient air quality monitoring programs including:
- TSP (Total Suspended Particulate) monitoring per 40 CFR Part 50, Appendix B
- PM10 monitoring per 40 CFR Part 50, Appendix J
- PM2.5 monitoring per 40 CFR Part 50, Appendix L
- Industrial hygiene assessments
- Environmental impact studies
