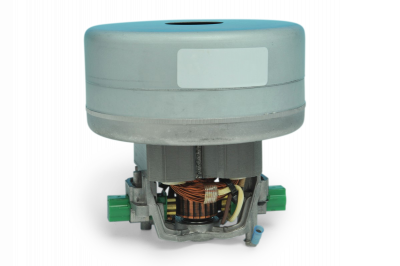

    110V Blower Motor for MFC High Volume Air Samplers

    Thumbnail Filmstrip of 110V Blower Motor for MFC High Volume Air Samplers Images

      Purchase 110V Blower Motor for MFC High Volume Air Samplers

      110V Blower Motor for MFC High Volume Air Samplers SKU: TE-116311

      $166.00


      The TE-116311 is a 110-volt blower motor specifically designed for mass flow controlled (MFC) high volume air sampling systems. This brush-style motor provides the vacuum power needed for ambient particulate collection in EPA-compliant monitoring applications. The mass flow controller uses a hot wire anemometer to maintain steady flow rates throughout sampling periods, while this motor responds to speed adjustments to compensate for filter loading.

      Motor Specifications

      • 2-stage, thru-flow design with 5.7-inch diameter
      • 110-120 volt, 60Hz operation
      • 7.6 amp running current
      • 91.2 inches H&sub2;O water lift capacity
      • 95 CFM air flow at 2-inch orifice
      • 245 air watts power output

      Compatible Systems

      This motor is designed for use in Tisch Environmental MFC high volume air samplers including:

      • PM10 particulate samplers with flow rates between 36-60 ft³/min
      • PM2.5 particulate samplers operating at 40 CFM
      • TSP (Total Suspended Particulate) samplers with flow rates between 39-60 CFM

      Mass flow controllers automatically adjust motor speed as filters begin collecting particulate, making this motor ideal for maintaining consistent sampling rates throughout extended monitoring periods.

      Maintenance Requirements

      This brush-style motor requires periodic maintenance of carbon motor brushes. Replacement brushes are available as TE-33384 (set of 2) for 110V motors TE-116311 and TE-116336. Motor brushes should be replaced after several years or around 300-500 operating hours. No grease, oil, or other maintenance is required beyond brush replacement.

      Applications

      Used in ambient air quality monitoring for:

      • EPA-compliant particulate monitoring networks
      • Industrial perimeter monitoring
      • Environmental research studies
      • Regulatory compliance monitoring

      TSP samplers operate within EPA acceptable flow limits of 1.10 to 1.70 m³/min (39 to 60 CFM), with this motor providing the consistent vacuum power needed for accurate particulate collection on 8" × 10" filter media.
