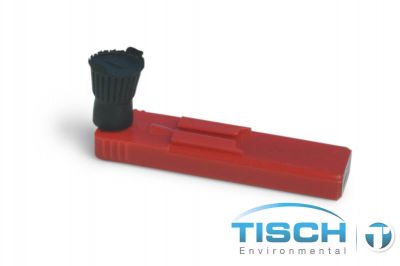

Recorder Pen Point - Red Ink for Dickson Chart Recorders SKU: TE-160

The TE-160 is a replacement red pen point for Dickson chart recorder, providing reliable red ink marking for continuous data recording applications. This individual pen point maintains precise line quality for accurate temperature, humidity, or pressure monitoring charts used in ambient air quality monitoring and environmental compliance applications.

Technical Operation

Chart recorder pens utilize capillary action ink flow to maintain consistent line weight and color density throughout the recording cycle. Pens can typically last from six months to one year, depending on recording frequency and environmental conditions. The red ink provides clear contrast against standard chart paper for easy data interpretation.

Compatibility

The TE-160 pen point is specifically designed for use with these Tisch Environmental chart recorder models:

• TE-5009 - 24 Hour Chart Recorder
• TE-5009X - Chart Recorder variant
• TE-5009XZ - Chart Recorder variant

These recorders are commonly used with high volume air samplers for EPA-compliant ambient air quality monitoring applications where continuous data logging is required.

Maintenance Guidelines

Regularly inspect the pen's ink level and writing quality, and replace it when the ink is depleted or the writing becomes faint. Always use Dickson chart pens with your recorder model to ensure accurate recordings. Store replacement pens in a clean, dry location to prevent contamination or ink degradation.

When replacing the pen point, lift the pen arm gently away from the chart, remove the depleted pen, and install the new TE-160 securely in the pen holder. Lower the pen arm back onto the chart to resume continuous recording.
