Gabled Roof Mounting Hardware Kit SKU: TE-5001-10-6

The TE-5001-10-6 mounting hardware kit provides the essential fasteners and components required to properly install the TE-5001-10 gabled roof on Tisch Environmental high volume air samplers. This comprehensive hardware package ensures secure, weather-resistant attachment of the protective roof assembly to TE-5001 anodized aluminum shelters used in TSP, PM10, and PM2.5 ambient air monitoring applications.

Complete Installation Hardware

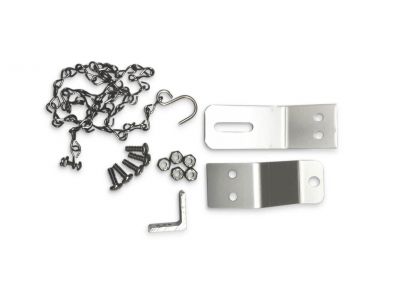

This hardware kit includes 5 pieces 10-24 x 1/2 pan head screws, 5 pieces 10-24 stop nuts, 1 piece 6-32 x 3/8 pan head screw, 1 piece 6-32 hex nut, and a 20-inch chain with S-hook for proper roof assembly installation. The kit provides all necessary components to securely mount catch mechanisms and safety chains that allow controlled roof opening during sampler maintenance and filter changes.

Key Installation Components

• Pan head screws and stop nuts for primary roof attachment points
• Hex nuts and screws for catch mechanism mounting
• Safety chain with S-hook for roof retention during service
• Corrosion-resistant hardware for outdoor environmental monitoring applications

Compatibility

This mounting hardware is specifically designed for the TE-5001-10 gabled roof assembly used on multiple Tisch Environmental high volume air sampler models including TE-5170DV-BL TSP VFC samplers and other TE-5001 shelter-based systems. The hardware kit works exclusively with the TE-5001 anodized aluminum shelter series and is not compatible with other shelter designs.

Installation Notes

Initial installation requires careful positioning of catch mechanisms with fasteners not fully tightened to allow adjustment after final assembly. The mounting hardware enables proper alignment of roof catches and safety chains for reliable operation during routine sampler maintenance. All fasteners should be checked periodically and retightened as needed in outdoor monitoring environments.
