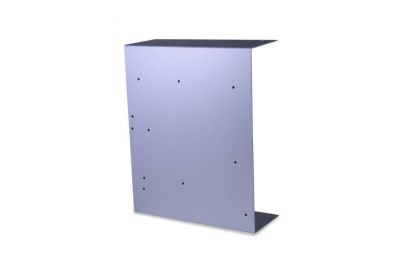

Shelter Timer Mounting Bracket SKU: TE-5001-8

The TE-5001-8 Timer Mounting Bracket provides secure installation of timer controls within TSP high volume air sampler shelters. This aluminum bracket mounts timing devices such as digital timers or mechanical timers to the interior wall of anodized aluminum TSP shelters.

The bracket positions the timer control for easy operator access while maintaining proper protection within the shelter enclosure. TSP samplers require precise timing control for EPA-compliant sampling schedules, and this bracket ensures the timer remains securely mounted during outdoor operation.

Compatibility

The TE-5001-8 bracket is designed for use with Tisch Environmental TSP shelter assemblies, including:

• TE-5001 - Standard anodized aluminum TSP shelter
• TE-5001-H - TSP shelter with MFC front panel cutout
• Complete TSP sampler systems (TE-5170 series)

Compatible with various timer types including digital timers with 1 in 3, 1 in 6, 1 in 7 sampling schedules, mechanical 7-day timers, and combination timer/controller units. The bracket accommodates standard timer housing dimensions used in EPA reference method TSP sampling systems.

Installation

The bracket mounts to pre-drilled holes in the shelter interior using standard fasteners. Proper mounting ensures timer controls remain accessible for programming while protecting electronic components from weather exposure. The bracket positions timers at optimal height for field technician operation during routine maintenance and sample collection.
