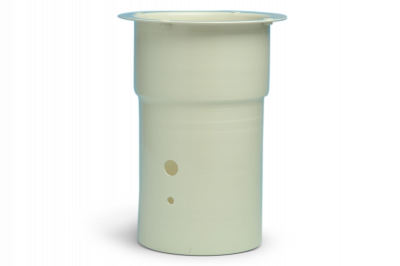

TE-5005-3 Aluminum Motor Housing, 4 Bolt Hole MFC Assembly Component SKU: TE-5005-3

The TE-5005-3 Aluminum Blower Motor Housing is a precision-machined replacement component designed for TE-5005 brush-type motor assemblies used in Mass Flow Controlled (MFC) high volume air sampling systems. This durable aluminum housing provides structural protection and thermal management for blower motors in EPA-compliant ambient air quality monitoring equipment.

Technical Design

Constructed from lightweight aluminum alloy, the TE-5005-3 housing delivers excellent heat dissipation properties essential for continuous-duty air sampling operations. The 4-bolt mounting configuration ensures secure attachment to compatible motor assemblies while maintaining precise alignment for optimal performance. The housing design accommodates both 110V and 220V motor configurations within the TE-5005 series.

Assembly Compatibility

This motor housing is specifically engineered for the TE-5005 brush-style blower motor assembly and works with the following components:

• Motor Flange (TE-5005-1)
• Motor Cushion (TE-5005-4)
• Motor Spacer Ring (TE-5005-5)
• Cord Retainer with Nut (TE-5005-7)
• Pressure Tap with Nut (TE-5005-8)

Installation Notes

The aluminum construction requires careful handling during installation to prevent thread damage. Use appropriate torque specifications when securing mounting bolts. Ensure proper gasket placement and sealing to maintain system integrity. The housing design allows for routine maintenance access to motor brushes and electrical connections.

Applications

Essential component for high volume air samplers used in ambient air quality monitoring for TSP, PM10, and PM2.5 compliance measurements. Compatible with both brush-style and brushless motor configurations in MFC-controlled sampling systems for environmental monitoring stations, industrial hygiene assessments, and regulatory compliance monitoring programs.
