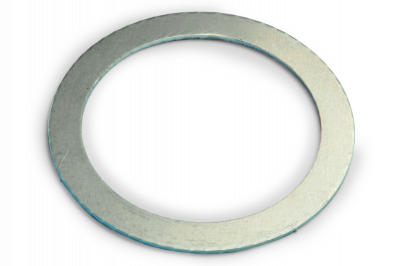

TE-5005-5 Motor Spacer Ring for TE-5005 Brush Style Blower Motor Assembly
The TE-5005-5 motor spacer ring is a precision component in the TE-5005 brush-style blower motor assembly used in high volume air samplers for EPA-compliant ambient air quality monitoring. This spacer ring ensures proper motor positioning and prevents wire pinching during motor assembly installation.
Function and Installation
The motor spacer ring prevents motor wires from being pinched beneath the ring during motor housing installation, ensuring safe electrical connections and proper motor operation. The ring provides critical spacing between the motor and housing components, maintaining proper alignment of the motor assembly within the blower housing.
Compatibility
The TE-5005-5 motor spacer ring is specifically designed for use with:
- TE-5005 110V brush-style blower motor assembly
- TE-5005X 220V brush-style motor assembly for mass flow controlled (MFC) systems
- High volume air samplers requiring TE-5005 series motor assemblies
Related Components
The TE-5005-5 spacer ring works in conjunction with other TE-5005 assembly components including:
- TE-5005-4 motor cushion
- TE-5005-3 aluminum blower motor housing
- TE-5005-7 cord retainer with nut
- TE-5005-8 pressure tap with nut
Installation Notes
During motor assembly, carefully pull the power cord out of the housing while placing the housing over the motor, ensuring no motor wires are pinched beneath the motor spacer ring. Proper installation of the TE-5005-5 spacer ring is essential for reliable motor operation and prevents electrical connection damage that could compromise sampler performance.
This component is manufactured by Tisch Environmental specifically for their brush-style motor assemblies used in EPA-compliant high volume air sampling applications including TSP, PM10, and PM2.5 monitoring programs.
