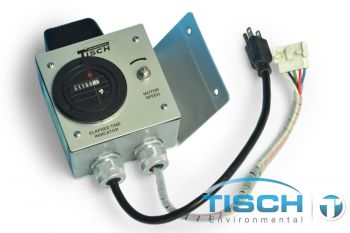

The TE-5010-BLX delivers precise voltage control and elapsed time monitoring for brushless motor assemblies in Tisch Environmental high volume air sampling systems. This dual-function controller operates at 220 volts, 50 hertz specifically for brushless motor configurations, providing both motor speed regulation and accurate runtime tracking required for EPA-compliant ambient air monitoring.
Technical Operation
The voltage control circuit modulates power delivery to maintain consistent motor performance across varying load conditions. The integrated elapsed time indicator (ETI) provides digital runtime tracking with precision timing circuitry that automatically records total operating hours. This combination ensures both flow rate stability and regulatory documentation requirements for ambient air quality monitoring applications.
Key Specifications
- Input voltage: 220 VAC, 50 Hz
- Motor compatibility: Brushless motor assemblies
- ETI function: Digital elapsed time display
- Control method: Voltage regulation
- Operating environment: Ambient air monitoring applications
Compatibility
The TE-5010-BLX pairs with 220-volt brushless motor assemblies used in Tisch Environmental high volume air samplers. Compatible motor assemblies include the TE-5005X-BL (220V brushless motor for MFC systems). This controller is designed specifically for brushless motor configurations and will not operate with brush-style motors.
Important: This is the 50 Hz version for international power systems. For 60 Hz applications, use TE-5010-BLXZ. For 110-volt systems, specify TE-5010-BL.
Installation and Operation
Mount the controller in a clean, dry environment with adequate ventilation. Connect motor leads according to Tisch Environmental wiring diagrams specific to your sampler model. The ETI begins tracking runtime automatically upon power application and continues to accumulate time during all motor operation periods. Reset functions may be available depending on configuration - consult technical documentation for your specific sampler system.
Applications
Essential component for TSP, PM10, and PM2.5 ambient air monitoring systems requiring brushless motor assemblies. Provides the precise flow control and documentation capabilities needed for EPA compliance in environmental monitoring networks, source assessment studies, and ambient air quality research programs.
