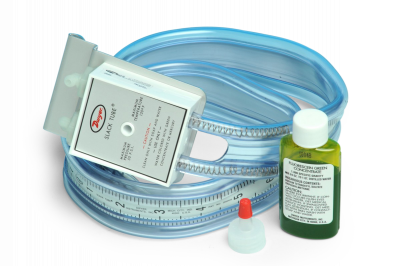

The TE-5030 is a 30-inch slack tube water manometer designed specifically for pressure measurement in high volume air sampling applications. This U-tube design provides primary standard accuracy because the difference in height between the two columns is always a true indication of pressure regardless of variations in the internal diameter of the tubing. The green dye enhances visibility for precise readings across the full 0-30 inch water column range.
Operating Principle
In its simplest form, the manometer is a U-tube about half filled with liquid. When positive pressure is applied to one leg, the liquid is forced down in that leg and up in the other. The difference in height indicates the pressure. A manometer is used to measure the pressure difference between two gases, often atmosphere and the gas being tested. The difference in the height of the liquid in each side is used to calculate the source pressure.
Key Features
- 30-inch measurement range (0-30" water column)
- Green dye for enhanced readability
- Primary standard accuracy
- Simple, reliable U-tube design
- No moving parts to calibrate or maintain
Compatibility
The TE-5030 is compatible with all Tisch Environmental high volume air samplers, including TSP, PM10, and PM2.5 configurations. This manometer serves as an essential tool for monitoring pressure drop across sampling filters and verifying proper system operation. Use with high volume samplers such as the TE-6000 series, TE-6001 series, and TE-5000 series samplers.
Installation and Use
One side of the tube is connected to the pressure source being tested and the other leg is left open to atmosphere. The green-dyed water provides clear visual indication of pressure differential. Because they have no moving parts, analog manometers do not require re-calibration, making the TE-5030 a reliable, maintenance-free instrument for field use.
Essential for EPA-compliant ambient air monitoring operations where accurate pressure measurement ensures proper sampling flow rates and filter loading assessment.
