Motor Housing for VFC Blower Assemblies - Aluminum, 8 Bolt Hole Pattern SKU: TE-5070-2

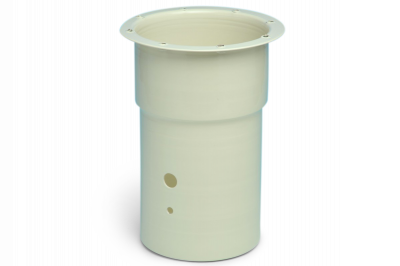

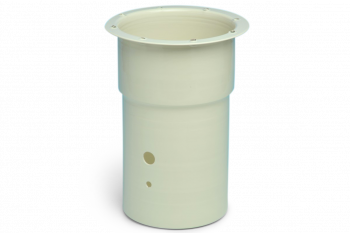

The TE-5070-2 is a precision-machined aluminum motor housing designed for Volumetric Flow Controlled (VFC) blower motor assemblies in EPA-compliant high volume air sampling systems. This housing features an 8-bolt hole pattern for secure motor mounting and proper alignment within the complete VFC assembly.

Motor Housing Design

The housing provides a durable aluminum enclosure that protects and positions the motor within the VFC blower assembly while maintaining proper airflow characteristics for volumetric flow control. The 8-bolt configuration ensures consistent motor positioning and reduces vibration during operation.

Assembly Integration

The TE-5070-2 housing integrates with multiple components including the motor cushion (TE-5005-4), motor spacer rings (TE-5005-5), and the VFC flange gasket (TE-5070-1). The complete assembly includes the clamp ring with 8-hole pattern (TE-5070-3) for secure connection to the volumetric flow controller.

Compatible Systems

This housing accommodates both 110V (TE-115923) and 220V (TE-116111) VFC motors used in TSP and PM10 high volume air sampling systems. The VFC motor assemblies operate at flow rates of 42-45 CFM continuous and meet EPA Code of Federal Regulations requirements for ambient air monitoring.

Applications

The TE-5070-2 housing is used in Volumetric Flow Controlled Total Suspended Particulate (TSP) high volume air sampling systems that meet EPA compliance standards, including the new EPA Lower Lead (Pb) standard of 0.5µg/m³. These systems are essential for ambient air quality monitoring, environmental compliance testing, and particulate matter assessment.

Related Components

Essential components for complete VFC assembly include motor brushes TE-33392 (110V systems) or TE-33378 (220V systems), motor cushion TE-5005-4, and VFC flange gasket TE-5070-1. The housing works with complete VFC motor assemblies TE-5070 (110V) and TE-5070X (220V).
