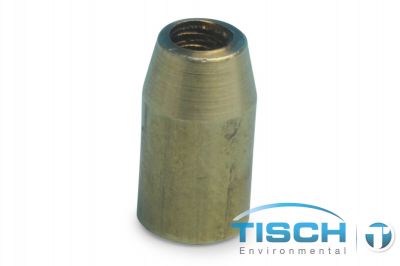

Brass Alignment Pin, Large - PM10 Inlet Component SKU: TE-6001-12

The TE-6001-12 Brass Alignment Pin, Large is a precision-machined component designed for the TE-6001 PM10 Size Selective Inlet system used in high volume ambient air samplers for EPA-compliant particulate matter monitoring.

Technical Design

This large alignment pin is constructed from high-quality brass, providing excellent corrosion resistance and dimensional stability for outdoor environmental monitoring applications. The brass material ensures consistent performance across temperature variations while maintaining precise mechanical alignment within the PM10 inlet assembly.

System Compatibility

This component is specifically designed for use with the TE-6001 PM10 Size Selective Inlet, which supports EPA-compliant ambient air quality monitoring for PM10 particulate sampling. The alignment pin ensures proper positioning and secure assembly of inlet components during field installation and maintenance operations.

For complete PM10 inlet assemblies, this alignment pin works in conjunction with other TE-6001 series components including:

• TE-6001-1 Inlet Hood
• TE-6001-27 Small Brass Alignment Pin (companion component)
• TE-6001-2.5-12 Bolt and washer assemblies
• TE-6001-32 Base pan strut brackets

Installation Notes

The large brass alignment pin provides critical positioning accuracy during PM10 inlet assembly and disassembly procedures. Proper alignment is essential for maintaining the aerodynamic performance characteristics required for EPA reference method compliance. Regular inspection of alignment pins during routine maintenance helps ensure continued measurement accuracy.

Applications

This component supports 40 CFR Part 50, Appendix J compliant PM10 monitoring applications including ambient air quality assessment, source impact studies, and regulatory compliance monitoring programs.
