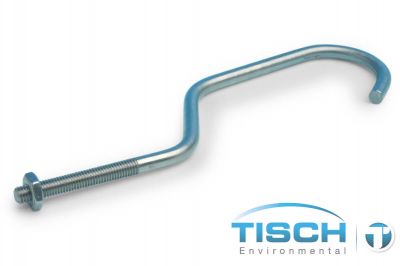

Bottom Tub Housing Catch Hook SKU: TE-6001-15

The TE-6001-15 Bottom Tub Housing Catch Hook is a critical securing component for the TE-6001 PM10 Size Selective Inlet used in high volume ambient air sampling systems. This precision-manufactured hook provides the latching mechanism that secures the bottom section of the PM10 inlet housing during sampling operations.

Function and Design

The catch hook works in conjunction with the TE-6001-14 Bottom Tub Housing Catch to create a reliable closure system for the PM10 inlet's lower housing assembly. When the inlet housing is closed, the hook engages with the catch mechanism to maintain proper alignment and sealing of the PM10 size-selective inlet components. This secure closure is essential for maintaining the EPA-compliant PM10 sampling performance required by 40 CFR Part 50, Appendix J.

Compatibility

The TE-6001-15 catch hook is specifically designed for use with:

• TE-6001 PM10 Size Selective Inlet assemblies
• TE-6001-14 Bottom Tub Housing Catch (no hook)
• TE-6001-13 Bottom Tub Housing
• Tisch Environmental PM10 high volume air samplers designed to collect ambient particulate matter with an aerodynamic diameter of 10µm or less

Maintenance and Installation

Regular inspection of the catch hook mechanism ensures reliable inlet closure and prevents sampling interruptions. The hook should be checked for proper engagement during routine maintenance of the PM10 inlet system. During inlet cleaning procedures, release the four hook catches on the side of the inlet to access internal components for cleaning and maintenance.

This component is manufactured to meet the precise tolerances required for federal reference method sampler designation number 0202-141 compliance, ensuring consistent performance in ambient air quality monitoring applications.
