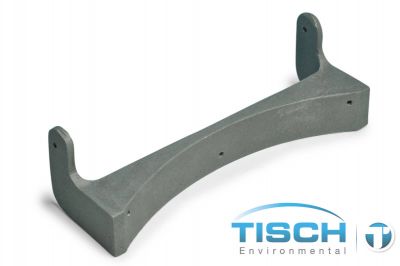

TE-6001-16 Bottom Tub Housing Hinge SKU: TE-6001-16

The TE-6001-16 Bottom Tub Housing Hinge is a precision-machined mechanical component designed for the TE-6000 series PM10 high volume air sampling systems. This critical hardware enables proper operation of the Bottom Tub Housing assembly by providing smooth articulation and secure closure of the protective enclosure surrounding the PM10 size selective inlet.

The hinge mechanism facilitates field access to the PM10 size selective inlet where particulates are separated and collected on 8" x 10" quartz filter paper. Proper hinge operation ensures weathertight sealing of the bottom tub housing, protecting critical sampling components from environmental contamination while maintaining EPA compliance per 40 CFR appendix J to part 50.

Compatibility

This hinge is specifically engineered for use with TE-6000 series PM10 high volume air samplers and works in conjunction with related housing components including:

• TE-6001-13 Bottom Tub Housing (main housing assembly)
• TE-6001-14 Bottom Tub Housing Catch (latch mechanism without hook)
• TE-6001-15 Bottom Tub Housing Catch Hook (complete latch assembly)
• TE-6001-5 Top Tub Housing (upper housing section)

Installation and Maintenance

The TE-6001-16 hinge mounts to the bottom tub housing structure and must be properly aligned to ensure smooth operation of the protective enclosure. Regular inspection of hinge operation is recommended during routine sampler maintenance to verify proper closure and seal integrity. The robust anodized aluminum construction provides durability for continuous ambient sampling installations.

For samplers operating in harsh environmental conditions or high-duty cycles, inspect hinge pivot points for wear and ensure all mounting hardware remains secure. Proper hinge function is essential for maintaining the weatherproof integrity required for 24-hour sampling periods at flow rates between 36-60 ft³/min.
