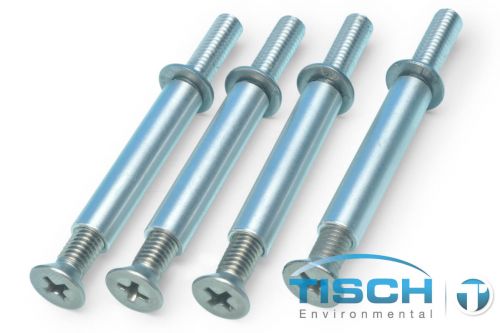

TE-6001-2.5-14 Spacer Bolt Assembly with Nut for PM10 Inlet SKU: TE-6001-2.5-14

The TE-6001-2.5-14 Spacer Bolt Assembly with nut is a precision fastener designed specifically for PM10 inlet installations. This assembly provides secure mounting and proper spacing for components within the TE-6001 Size Selective Inlet system used in PM10 ambient air sampling.

Technical Specifications

• Complete bolt assembly includes spacer bolt and matching nut
• Engineered for outdoor environmental monitoring applications
• Corrosion-resistant materials for long-term field deployment

Compatibility

This spacer bolt assembly is designed for use with:

• TE-6001 PM10 Size Selective Inlet
• PM10 high volume air sampling systems requiring precise component spacing

Related components include TE-6001-2.5-13 Bolt and Nut sets and TE-6001-2.5-12 Bolt and washer sets for different mounting requirements within the inlet assembly.

Installation Notes

Install according to TE-6001 PM10 inlet assembly procedures. Ensure proper torque specifications are followed to maintain system integrity and EPA compliance. Align components carefully during installation, ensuring washers are positioned correctly on top of struts.

For complete PM10 sampling system setup and maintenance procedures, consult the TE-6000 Series operations manual. This spacer bolt assembly is sold individually and is essential for maintaining proper geometric relationships within the size selective inlet during EPA-compliant PM10 monitoring operations.
