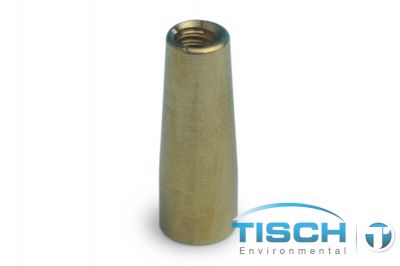

Small Brass Alignment Pin for PM10 High Volume Air Sampler Inlet SKU: TE-6001-27

The TE-6001-27 small brass alignment pin is a precision component designed for the TE-6001 PM10 size selective inlet assembly in high volume ambient air sampling systems. This machined brass pin ensures proper alignment and positioning of inlet components during assembly and maintenance operations.

Technical Function

The alignment pin serves as a positioning guide for critical inlet components, maintaining precise dimensional relationships required for PM10 size selective inlet operation. Proper alignment is essential for maintaining the aerodynamic performance characteristics that enable accurate particle size separation in compliance with EPA particulate monitoring standards.

Compatibility

This small brass alignment pin is specifically designed for use with the TE-6001 PM10 Size Selective Inlet for High Volume Ambient Air Sampler. It works in conjunction with other TE-6001 series hardware components including:

• TE-6001 PM10 Size Selective Inlet assembly
• Related PM10 inlet mounting hardware and brackets
• TE-6000 series high volume air sampling systems

For applications requiring larger alignment hardware, the TE-6001-12 large brass alignment pin is available as an alternative component.

Installation Notes

Replace alignment pins when wear or deformation is observed during routine inlet maintenance. Proper alignment pin condition is critical for maintaining inlet performance and ensuring reliable particulate size separation. Always verify pin placement according to Tisch Environmental assembly procedures before returning the sampler to service.
