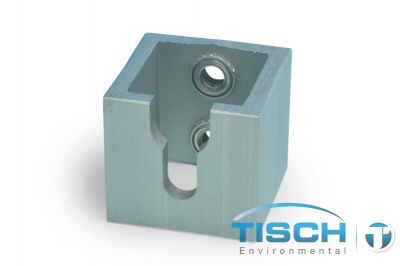

PM10 Inlet Base Pan Strike SKU: TE-6001-29

The TE-6001-29 PM10 Inlet Base Pan Strike is a precision-engineered structural component designed for Tisch Environmental's TE-6001 PM10 Size Selective Inlet systems. This strike component works within the base pan assembly to ensure proper alignment and secure positioning of inlet components during PM10 particulate sampling operations.

System Integration

The base pan strike integrates with other TE-6001 series components including the TE-6001-30 PM10 Inlet Base Pan Hinge Bracket, TE-6001-32 PM10 Inlet Base Pan Strut Bracket, and TE-6001-35 Shelter Base Pan. These components work together to provide stable mechanical support for the PM10 inlet during continuous ambient air monitoring operations.

PM10 Sampling Application

PM10 samplers use a size selective inlet to separate out particulate matter larger than 10 micrometers, ensuring compliance with EPA National Ambient Air Quality Standards. The base pan strike contributes to the structural integrity required for accurate 24-hour sampling periods using EPA-recommended digital timer systems.

Compatibility

This component is specifically designed for use with the TE-6001 PM10 Size Selective Inlet and associated high volume ambient air sampling systems. Compatible with both Mass Flow Controlled (MFC) and Volumetric Flow Controlled (VFC) PM10 samplers featuring brush-style or brushless motor configurations.

Installation Notes

The base pan strike should be installed according to Tisch Environmental's specifications to ensure proper mechanical alignment within the PM10 inlet assembly. Regular inspection of all base pan components is recommended to maintain sampling system integrity and prevent contamination of particulate samples.
