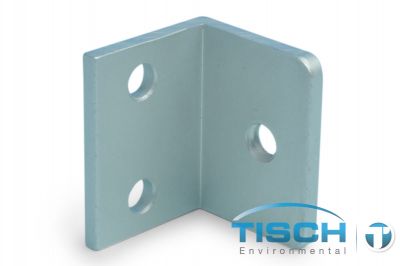

The TE-6001-32 PM10 Inlet Base Pan Strut Bracket is a precision-engineered structural support component for Tisch Environmental's PM10 high volume air samplers designed according to the guidelines outlined in 40 CFR appendix J to part 50. This bracket provides essential structural support for the base pan assembly of PM10 size-selective inlets used in EPA-compliant ambient air monitoring systems.
Technical Design
Manufactured from durable materials, this strut bracket secures the base pan assembly within the PM10 inlet housing, ensuring proper alignment and structural integrity during continuous outdoor operation. The bracket maintains the critical dimensional relationships required for PM10 inlet operation to separate out particulate matter larger than 10µm, ensuring that only concentrations of PM10 are deposited onto the filter.
System Compatibility
The TE-6001-32 strut bracket is specifically designed for use with Tisch Environmental's high volume PM10 sampling systems and related PM10 inlet components including:
- TE-6001-35 - Shelter Base Pan (aluminum pan)
- TE-6001-30 - PM10 Inlet Base Pan Hinge Bracket
- TE-6001-36 - Shelter Base Pan Gasket (16" x 16")
- TE-6001-37 - Shelter Base Pan Catch with Bolt
Installation and Maintenance
This strut bracket is a field-replaceable component that installs within the PM10 inlet base pan assembly. During routine maintenance inspections, verify that all bracket mounting hardware is secure and that there are no signs of corrosion or structural damage that could compromise inlet performance. The bracket should be inspected whenever the inlet assembly is serviced or when base pan components are accessed.
EPA Compliance Applications
Essential for maintaining the structural integrity of PM10 high volume air samplers used as federal reference method (FRM) instruments for collecting ambient particulate matter with aerodynamic diameter of 10µm or less according to EPA guidelines. These systems support ambient air quality monitoring programs required under NAAQS compliance and 40 CFR Part 50, Appendix J reference method specifications.
