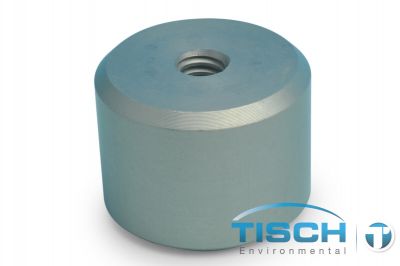

Shelter Base Pan Strut Holder Spacer SKU: TE-6001-41

The TE-6001-41 Shelter Base Pan Strut Holder Spacer is a precision structural component designed to maintain proper alignment and spacing between the shelter base pan and strut assemblies in Tisch Environmental high volume air sampling systems. This component works with the High Volume PM10 Inlet shelter system to ensure stable mounting and operation of ambient air monitoring equipment.

Component Function

This spacer provides critical dimensional stability between the shelter base pan and strut holder assemblies, preventing structural stress and maintaining proper seal integrity. The precision-manufactured spacer ensures consistent positioning under varying environmental conditions and sampling loads.

Compatibility

The TE-6001-41 spacer is compatible with Tisch Environmental shelter base pan assemblies and works in conjunction with related components including:

• TE-6001-35 - Shelter Base Pan (aluminum pan)
• TE-6001-40 - Small Shelter Base Pan Strut Holder Spacer
• TE-6001-32 - PM10 Inlet Base Pan Strut Bracket
• TE-6001-8 - Tub Housing Large Strut Holder

Installation Notes

Proper installation of the strut holder spacer is essential for maintaining structural integrity and preventing damage to the shelter base pan assembly. The spacer should be inspected for wear or damage during routine maintenance intervals and replaced if any deformation or material fatigue is observed. Ensure all mounting hardware is properly torqued to manufacturer specifications to prevent loosening during operation.

Applications

This component supports EPA-compliant ambient air quality monitoring operations by providing reliable structural support for shelter systems housing high volume PM10 samplers. The spacer ensures consistent sampler positioning required for accurate flow measurements and representative sample collection in outdoor monitoring stations.
