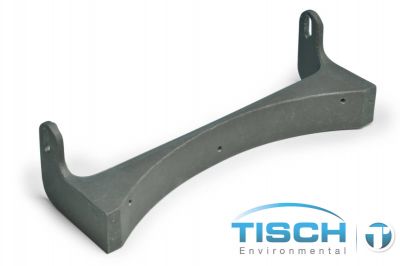

Top Tub Housing Hinge for TE-6001 PM10 Size Selective Inlet SKU: TE-6001-7

The TE-6001-7 Top Tub Housing Hinge is a precision-manufactured replacement component for Tisch Environmental's TE-6001 PM10 size selective inlet systems. This hinge enables the reliable opening and closing of the top tub housing section, providing essential access for filter changes, maintenance operations, and inlet inspections on EPA Federal Reference Method PM10 high volume air samplers.

Function and Operation

The top tub housing hinge serves as the primary pivot mechanism for the upper section of the PM10 inlet housing assembly. It allows the top housing to swing open smoothly, exposing the first stage plate with vent tubes and the filter collection area where PM10 particulates are collected on 8" x 10" quartz filter paper. The hinge is engineered to withstand repeated opening and closing cycles while maintaining proper alignment and weathertight sealing when closed.

System Compatibility

This hinge is specifically designed for use with the complete TE-6001 PM10 size selective inlet assembly. It works in conjunction with related housing components including:

• TE-6001-5 Top Tub Housing - the main upper housing section
• TE-6001-8 Top Tub Housing Strut Holder Large - supports the housing when open
• TE-6001-9 Top Tub Housing Strut Holder Shoulder Bolt - mounting hardware
• TE-6001-10 Strut - holds housing in open position
• TE-6001-6 Top Tub Housing Strike - latch mechanism component

The TE-6001-7 hinge is compatible with all TE-6000 series PM10 high volume air samplers operating under 40 CFR Part 50, Appendix J regulations, including both mass flow controlled (MFC) and volumetric flow controlled (VFC) systems with brush or brushless motors.

Maintenance and Installation

Regular inspection of the hinge mechanism is recommended during routine sampler maintenance. Check for smooth operation, proper alignment, and signs of wear or corrosion. The hinge should operate freely without binding while maintaining secure closure when the housing is latched. Replace if excessive play develops or if the hinge fails to support the housing weight properly.

Installation requires basic hand tools and should be performed with the sampler powered down. Ensure proper alignment with the TE-6001-16 Bottom Tub Housing Hinge for balanced operation of the housing assembly.
