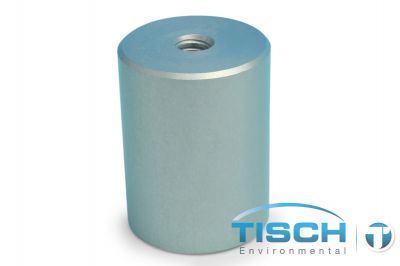

Tub Housing Large Strut Holder SKU: TE-6001-8

The TE-6001-8 is the top tub housing strut holder (large) for Tisch Environmental's TE-6000 Series PM10 high volume ambient air samplers. This precision-machined component secures the strut assembly that supports and stabilizes the top tub housing during sampling operations.

Function and Design

The strut holder provides a secure mounting point for the strut (TE-6001-10) and works in conjunction with the shoulder bolt (TE-6001-9) to create a robust support system for the top tub housing. This structural component ensures proper alignment and prevents movement of the sampling inlet during high-flow operations, maintaining the integrity of the PM10 size-selective sampling system.

Compatibility

Designed specifically for TE-6000 Series PM10 high volume ambient air samplers. This strut holder is part of the top tub housing assembly and works with:

• TE-6001-5 Top Tub Housing
• TE-6001-10 Strut
• TE-6001-9 Top Tub Housing Strut Holder Shoulder Bolt

Applications

Essential component for EPA-compliant PM10 ambient air quality monitoring systems. Used in environmental monitoring networks, industrial emissions assessment, and regulatory compliance programs requiring 40 CFR Part 50, Appendix J PM10 reference method sampling.

Installation Notes

Replace when mechanical wear or damage is observed during routine maintenance inspections. Proper torque specifications and alignment are critical for maintaining sampling system integrity. Tisch Environmental recommends inspection during scheduled maintenance cycles to ensure continued structural support of the inlet assembly.
