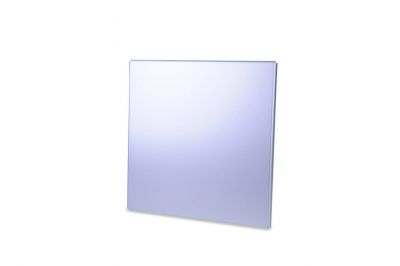

Shelter Bottom Pan for TE-5001 TSP Anodized Aluminum Shelter SKU: TE-5001-7

The TE-5001-7 Shelter Bottom Pan serves as the structural base component for the TE-5001 Anodized Aluminum Shelter used in TSP (Total Suspended Particulate) high volume air sampling systems. This anodized aluminum pan provides a weatherproof foundation that houses electrical components and supports the entire sampling assembly during outdoor ambient air monitoring operations.

Installation and Compatibility

The bottom pan features pre-drilled mounting holes for secure installation of electrical components. For 110 volt installations, power transformers are mounted to the bottom pan using (4) ¼-20 bolts and nuts. The pan is designed specifically for use with TE-5001 series shelter assemblies and maintains proper spacing and alignment for all internal components.

Compatible Shelter Systems:

• TE-5001 - Anodized Aluminum TSP Shelter, Solid Front
• TE-5001-H - TSP Shelter with Square Hole for MFC
• TE-5170DV-BL TSP VFC systems
• TE-5170-D TSP MFC samplers

Related Shelter Components

The TE-5001-7 works with other shelter components to create a complete weatherproof enclosure:

• TE-5001-6 - Shelter Top Pan for TSP
• TE-5001-3 - Shelter Left Side
• TE-5001-4 - Shelter Right Side
• TE-5001-2 - Shelter Back
• TE-5001-10 - Gabled Roof Assembly

Applications

The shelter system supports ambient air monitoring to determine suspended particulate levels relative to air quality standards and impact assessment of specific sources on ambient particulate levels. TSP samplers are designed based on aerodynamic principles to collect particles of 100 microns (Stokes Equivalent Diameter) and smaller, making them suitable for EPA-compliant environmental monitoring programs.
