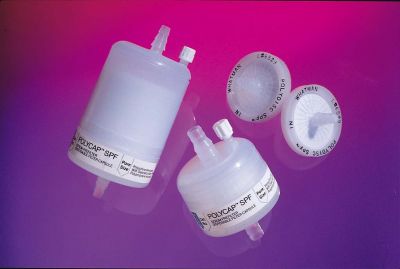

PolyCap SPF TC 75 PES Capsule Filter SKU: 6705-7500

Polyethersulfone (PES) Capsule Filters - 6705-7500

From buffer preparation through biologics processing, PES capsule filters provide the membrane performance and single-use convenience required by modern pharmaceutical workflows. Additionally, asymmetric PES membrane construction captures contaminants at the upstream surface while maintaining open pore channels beneath, extending capsule service life and reducing the frequency of mid-batch device changes. Altogether, the result is a streamlined filtration step that integrates directly into fluid transfer systems, reducing hold times and minimizing the manual handling that compromises sterility assurance.

Key Polyethersulfone (PES) Membrane Characteristics

• The inherently hydrophilic PES membrane wets immediately on contact with aqueous solutions, eliminating alcohol pre-flush steps and reducing both startup time and solvent waste.
• Maximum operating temperature of 121 degrees Celsius supports filtration of warm solutions and accommodates the thermal conditions present in process environments.
• Ultra-low protein binding characteristics of the PES membrane minimize adsorptive losses, preserving the concentration and biological activity of filtered proteins, antibodies, and growth factors.
• PES membrane construction supports integrity testing by forward flow, bubble point, or pressure decay methods, providing the post-use verification required by pharmaceutical quality systems.
• PES membrane capsules deliver broad pH compatibility from 1 to 14, accommodating the full range of buffers, media, and cleaning solutions encountered in biopharmaceutical processing.

Key Capsule Construction Features

• Stepped hose barb design accommodates multiple tubing sizes on a single fitting, simplifying inventory management and enabling connection flexibility across different process configurations.
• Single-use polypropylene capsule construction eliminates cleaning validation requirements, reducing the regulatory burden and turnaround time associated with reusable stainless steel filter housings.
• Thermally fused polypropylene construction eliminates adhesives, binders, and O-rings from the fluid path, reducing extractable contamination and simplifying material qualification.
• Polypropylene capsule housing provides broad chemical compatibility from pH 1 to 14, resisting the acids, bases, and process chemicals that degrade alternative housing materials.

Whether your process requires sterilizing-grade retention for a 500-milliliter bench trial or clarification capacity for a 100-liter production batch, the right capsule filter configuration eliminates the compromises between throughput, retention, and operational simplicity. For this application, if your process involves aqueous biologicals, the ultra-low protein binding and broad pH compatibility of PES membrane construction protect your product while sustaining the flow rates your batch schedule requires. Take control of your sample preparation variables and ensure that your data reflects the true nature of your work, rather than the quality of your consumables.

Sterilization Guidance

Polypropylene construction throughout the device permits autoclave sterilization at standard conditions, enabling end-user preparation for sterile filtration applications as needed.

For more information about chemical compatibility, please review our Chemical Compatibility Chart.

Bubble Point (psi)

15 psi

Burst Pressure (psi)

60 psi

Capsule Format

Polycap SPF 75

Compliance Standards

ISO 9001

Construction

Polypropylene

Diameter

7.5 cm

Filling Bell (Yes/ No)

No

Filtration Area

450 cm²

Inlet Connection

Stepped barb

Length

9.6 cm

Material

PES

Max Batch Volume

Medium-volume batch processing

Maximum Operating Pressure

60 psi

Maximum Operating Temperature (°C)

121 °C

Outlet Connection

Stepped barb

Pack Count

1

Pore Size (µm)

1

Pre-filter Pore Size

Unrated

Prefilter (Yes/No)

Yes

Sterility

Nonsterile

Sterilization

Autoclave

Vent (Yes/ No)

No

Wettability

Hydrophilic

• Biologics Protection - Ultra-low protein binding preserves antibody and growth factor concentrations through the membrane retention step.
• Buffer Processing - Large-volume filtration of pharmaceutical buffers and process solutions with broad pH compatibility across pH 1-14.
• Water Purification - Membrane-grade filtration of purified water and water-for-injection systems in pharmaceutical manufacturing facilities.
• Process Intermediates - In-line capsule filtration of pharmaceutical intermediates with validated retention and low adsorptive losses.
• Serum Processing - Capsule filtration of animal sera and biological supplements for cell culture and diagnostic reagent applications.
• Reagent Filtration - Removal of particulates and contaminants from laboratory reagents and process solutions before downstream use.
