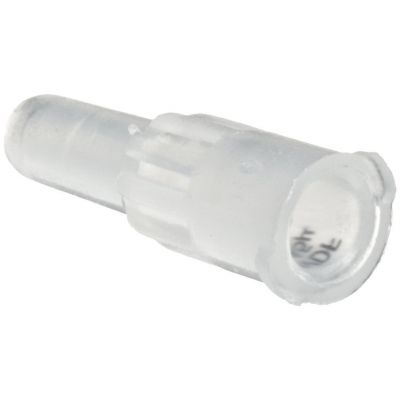

Whatman Puradisc PVDF Syringe Filters, 0.2 µm, 4 mm, 100/Pk - 6779-0402
Whatman verifies performance ratings at the lot level using process controls that stay uniform across its entire filtration lineup. At the sub-micron pore rating, a syringe filter delivers sterilizing-grade retention at the point of use. PVDF holds up to alcohols and mild hydrocarbon solvents while suiting HPLC sample preparation with immediate, reliable uptake and blocks bacterial passage through its smallest rated openings. Thermal-bonded PP construction leaves no seam for sample to bypass the membrane while shedding virtually no extractable material into the sample and stays inert across common laboratory solvents. Where bacterial contamination must stay out of the sample, manufacturer-tested retention keeps the instrument and downstream assay protected without a housing to maintain or clean.
Membrane Characteristics
- Bacterial challenge testing with Brevundimonas diminuta at 10 million CFU per cm2 confirms sterilizing grade
- Absolute pore rating ensures reproducible results between test runs
- Chemical compatibility spans the full pH 1 to 14 range
- Hydrochloric, dilute nitric, and up to 90% sulfuric acid cause no attack
- Vapor-phase hydrogen peroxide decontamination cycles leave the membrane intact
Housing Characteristics
- Burst pressure rating provides a wide safety margin above the rated maximum operating pressure
- Stable across the full aqueous pH range in routine sample work
- Minimal ionic background from the polypropylene housing supports ion chromatography and trace-metal ICP-MS sample preparation
- Thermal-bonded construction keeps adhesives out of the fluid path
Unfiltered particulates shift your retention times and peak shapes from run to run. Pre-injection filtration protects the resolution your methods depend on across your chromatography methods. Start a live chat with the Tisch Scientific team about packaging, unit count, and ship-date for your filtration order.
Sterilization Guidance
Customer autoclave compatibility at 121°C accommodates in-lab sterilization timing.
For more information about chemical compatibility, please review our Chemical Compatibility Chart.
- Bubble Point (psi)
- 1.8 bar (26 psi)
- Burst Pressure (psi)
- 75psi
- Connection Type
- Luer-Lok/ Luer Slip
- Construction
- Polypropylene
- Diameter
- 4mm
- Filtration Area
- 0.2cm²
- Holdup Volume
- <10µl
- Material
- Polyvinylidene Difluoride (PVDF)
- Maximum Operating Pressure
- 75psi
- Maximum Operating Temperature (°C)
- 100°C
- Pack Count
- 100
- Pore Size (µm)
- 0.2
- Prefilter (Yes/No)
- No
- Sterility
- Nonsterile
- Sterilization
- Autoclavable 121°C
- Volume Throughput (ml)
- Up to 2ml
- Wettability
- Hydrophobic
- Protein Purification - Facilitates routine clarification of chromatography samples, preventing column fouling without binding target proteins.
- Trace Analysis - Prevents non-specific binding in trace analysis, keeping low-concentration analytes in solution for reliable detection.
- Biological Samples - Clarifies protein-rich solutions without loss of target molecules, preserving sample integrity for critical downstream assays.
- Immunochemistry Research - Delivers exceptional chemical resistance for mild organic mixtures used in sensitive immunochemical research applications.
- Water Quality Monitoring - Clarifies environmental and drinking water samples ahead of turbidity, ion, or contaminant testing in monitoring programs.
- Microbiome Sampling - Concentrates waterborne microbial cells on a low-binding membrane ahead of DNA extraction and metagenomics sequencing.
