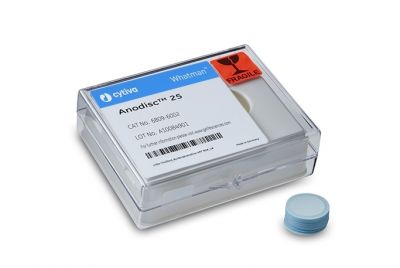

Ano Disc Circle w/ Support Ring, 47mm Diameter, 0.02 um Pore Size (50/Pk) SKU: 6809-5002

Aluminum Oxide (Anopore) Membrane Filters - 6809-5002

The Whatman 6809-5002 protects sensitive instrumentation and sample integrity by providing reliable particulate removal with minimal analyte adsorption or background interference. Quality-controlled manufacturing ensures the filtration medium delivers the retention efficiency and throughput that demanding laboratory protocols require. In combination, each membrane disc reflects a manufacturing standard where retention characteristics, physical integrity, and dimensional accuracy are verified before release.

Material Specifications

• Thermally stable to over 400°C, Anopore membranes withstand sterilization and high-temperature processing without structural change.
• Inorganic and extremely rigid, offering no deformation under high pressure filtration.
• Precisely controlled pore geometry provides sharp molecular weight cutoffs for size-based separation of nanoparticles and macromolecules.
• Anopore Aluminum Oxide membranes feature a unique honeycomb pore structure for precision.
• Transparent when wet, making them exceptional for light microscopy applications.

Scaling your method from development to routine production requires membrane consistency at every lot — the documented specifications of these membranes provide the reproducibility needed to validate the filtration step once. Chemical inertness across the full pH range gives you a membrane that handles your most aggressive aqueous matrices — strong acids, strong bases, and oxidizing solutions — without the degradation that limits organic polymer alternatives. Take control of your sample preparation variables and ensure that your data reflects the true nature of your work, rather than the quality of your consumables.

For more information about chemical compatibility, please review our Chemical Compatibility Chart.

Bubble Point (psi)

N/A

Color

white

Diameter

47mm

Extractables

minimal

Filtration Area

17.35cm²

Flow Rate

25ml (Water)

Grid (Yes/No)

No

Material

Aluminum Oxide

Maximum Operating Pressure

75psi

Maximum Operating Temperature (°C)

40°C

Membrane Thickness (µm)

60um

Pack Count

50

pH Range

4-9

Pore Size (µm)

0.02

Sterility

Nonsterile

Sterilization

Autoclavable at 121°C for 30 mins

Support Material

Polypropylene Support Ring

Wettability

Hydrophilic

• Gravimetric Analysis - Captures total suspended solids from liquid samples on a weighed disc, ensuring accurate mass measurements for reporting.
• Quality Control Testing - Serves as a standard check filter for routine batch purity tests, verifying the absence of visible physical contaminants.
• Sediment Collection - Efficiently harvests precipitates from chemical reactions, allowing for the recovery and drying of the solid synthesis product.
• Vacuum Clarification - Utilized in Buchner funnels to rapidly remove particulates from large-volume batches of non-critical laboratory buffers.
• Stack Pre-filtration - Acts as a spacer or depth layer in multi-tier filtration stacks to extend the life of the final downstream membrane.
• Air Particulate Sampling - Traps airborne dust and pollen on a positioned open-face filter disc for subsequent microscopic or chemical analysis.
