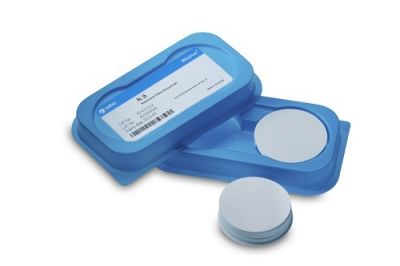

Polyamide Membrane Circle (NL17), 0.45um Pore Size, 50mm, 100/Pk SKU: 10414114

Nylon Membrane Filters - 10414114

Precision-manufactured Hydrophilic membrane with a verified 0.45 pore structure delivers consistent retention performance across demanding laboratory filtration workflows. At its core, precision-manufactured Hydrophilic membrane with a verified 0.45 pore structure delivers consistent retention across the full operating range. Taken together, controlled production conditions produce membranes with documented pore size distribution and thickness tolerances, supporting method reproducibility across multiple filter lots.

Material Specifications

• Ideal for filtering aqueous biological solutions and mobile phases.
• Alkaline-resistant and compatible with a broad range of aqueous buffers used in pharmaceutical and biotechnology laboratories.
• Broad compatibility with alcohols, aliphatic hydrocarbons, and aromatic solvents extends Nylon filtration into mixed-solvent sample preparation.
• High mechanical strength allows Nylon membranes to withstand elevated differential pressures without structural deformation.
• Flexible and durable, eliminating the need for wetting agents that could contaminate samples.

Multi-site studies where different laboratories must produce comparable data benefit from membranes manufactured to tight specifications, giving you confidence that site-to-site variability is not introduced by the filtration step. To that end, the natural wettability of nylon allows you to begin filtration immediately upon sample contact, eliminating the bubble formation and flow interruption that hydrophobic membranes introduce when processing aqueous samples without pre-treatment. Secure your research outcomes by partnering with a filtration solution that understands your need for speed, accuracy, and reproducibility.

For more information about chemical compatibility, please review our Chemical Compatibility Chart.

Bubble Point (psi)

32-46psi

Color

white

Diameter

50mm

Extractables

low

Filtration Area

19.63cm²

Flow Rate

> 50ml (Water)

Grid (Yes/No)

No

Material

Nylon

Maximum Operating Pressure

Holder-dependent

Maximum Operating Temperature (°C)

135°C

Membrane Thickness (µm)

110um

Pack Count

100

pH Range

3-14

Pore Size (µm)

0.45

Sterility

Nonsterile

Sterilization

Autoclavable at 121°C for 30 mins

Support Material

None

Wettability

Hydrophilic

• Atmospheric Testing - Used in dry deposition sampling to capture specific atmospheric nitrates and sulfates for environmental quality studies.
• Alkaline Filtration - Withstands high-pH solutions during industrial fluid processing, offering durability where other polymers might degrade.
• Southern Blot Transfer - Binds nucleic acids strongly during capillary transfer, providing a durable matrix for repeated hybridization cycles.
• Northern Blotting - Excellent for RNA transfer applications where high tensile strength is required for multiple rounds of probe stripping.
• Solvent Mobilization - Clarifies organic mobile phases in glass vacuum holders, preventing particulate damage to sensitive HPLC pump seals.
• Radiolabeled Assays - Retains radiolabeled DNA/RNA fragments efficiently, ensuring accurate quantification in molecular biology experiments.
