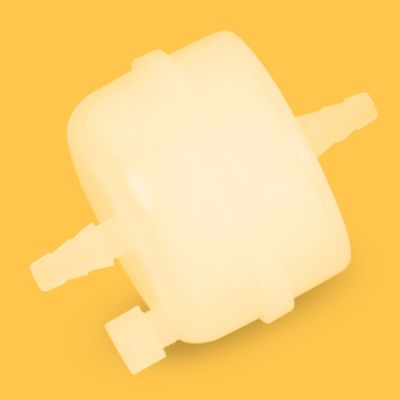

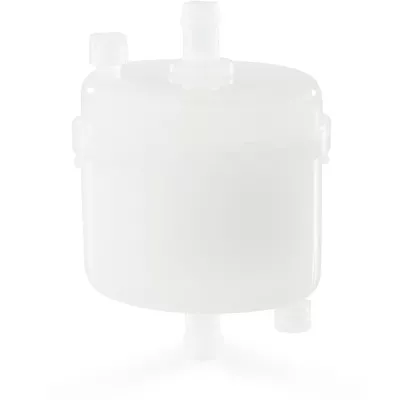

Nylon Capsule Filter, 0.45um, 72mm x 100mm, 3/8 in. Hose Barb, Nonsterile, 1/Pk SKU: SF14914

Nylon Capsule Filters - SF14914

Nylon capsule filters combine the broad chemical tolerance needed for diverse laboratory applications with the ready-to-use convenience of a self-contained, disposable filtration device. Built for consistent results, naturally hydrophilic nylon membrane within the capsule housing wets immediately on contact with aqueous solutions, eliminating pre-conditioning steps and enabling rapid filtration startup for time-sensitive applications. Ultimately, the result is a filtration process that eliminates cleaning validation, reduces changeover time, and provides batch-to-batch consistency through factory-tested, integrity-verified devices.

Key Nylon Membrane Characteristics

• The 25 milliliter holdup volume reflects the capsule's internal fluid path geometry, relevant to recovery calculations for precious samples and small-batch pharmaceutical formulations.
• Nylon membrane capsules offer natural hydrophilicity across their full pore structure, ensuring complete wetting with aqueous solutions without the pre-treatment steps required by hydrophobic alternatives.
• Nylon capsule filters resist common laboratory solvents including alcohols, esters, and bases, while maintaining stable performance above pH 3 across typical processing conditions.
• Nylon capsule filters provide a cost-effective filtration option for high-volume reagent preparation, buffer filtration, and general laboratory applications where ultra-low binding is not the primary requirement.
• Maximum operating temperature of 80 degrees Celsius supports filtration of warm solutions and accommodates the thermal conditions present in process environments.

Key Capsule Construction Features

• The sealed polypropylene housing is individually integrity-tested during manufacturing, verifying membrane installation and housing seal quality before the device leaves the production facility.
• Single-use polypropylene capsule construction eliminates cleaning validation requirements, reducing the regulatory burden and turnaround time associated with reusable stainless steel filter housings.
• Polypropylene capsule housing provides broad chemical compatibility from pH 1 to 14, resisting the acids, bases, and process chemicals that degrade alternative housing materials.
• Polypropylene housing materials provide documented biocompatibility and low extractable profiles, supporting integration into pharmaceutical and food-processing filtration applications.

When your filtration protocol calls for a validated, integrity-testable barrier that arrives ready to connect and begins filtering immediately, the capsule format delivers that capability without the overhead of traditional filter assemblies. For applications like these, for facilities processing buffers, reagents, and mixed solvent systems, nylon capsule filters provide the chemical versatility your multi-application laboratory environment demands. Make the decision for consistency and reliability, ensuring that your laboratory maintains its reputation for high-quality, error-free output.

Sterilization Guidance

Non-sterile delivery accommodates applications where sterility is not required, while the all-polypropylene construction provides the option for autoclave sterilization when aseptic processing is specified.

For more information about chemical compatibility, please review our Chemical Compatibility Chart.

Bubble Point (psi)

23.2psi

Compliance Standards

ISO 9001

Connection Type

3/8 in. hose barb

Construction

Polypropylene

Diameter

72mm

Dimensions

72mm x 100mm

Filling Bell (Yes/ No)

No

Filtration Area

500cm²

Flow Rate

0.62 L/min at 0.1 bar

Holdup Volume

25mL

Inlet Connection

3/8 in. Hose Barb

Length

100mm

Material

Nylon

Max Batch Volume

＜20L

Maximum Operating Pressure

75.4psi

Maximum Operating Temperature (°C)

80°C

Outlet Connection

3/8 in. Hose Barb

Pack Count

1

Pore Size (µm)

0.45

Prefilter (Yes/No)

No

Sterility

Nonsterile

Sterilization

Autoclavable at 121°C for 30 mins

Vent (Yes/ No)

Yes

Weight

0.25

Wettability

Hydrophilic

• Mixed Solvents - Filtration of aqueous-organic solvent mixtures without pre-wetting steps required by hydrophobic membrane alternatives.
• Aqueous Processing - Hydrophilic membrane filtration of water-based solutions with immediate wetting and full surface area utilization.
• Environmental Samples - Processing of water, soil extract, and environmental samples requiring both particulate removal and volume capacity.
• Reagent Preparation - General-purpose filtration of laboratory reagents, buffers, and chemical solutions across aqueous and organic systems.
• Laboratory General - Versatile capsule filtration platform for multi-application laboratories processing diverse solution types at volume.
• Chemical Solutions - Filtration of alcohols, esters, and mild organic solvents compatible with the broad chemical tolerance of nylon membranes.
