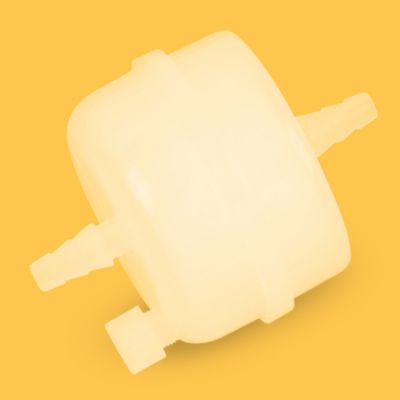

Nylon Capsule Filter, 0.45um, 72mm x 95mm, 1/4 - 3/8 in. Stepped Hose Barb, Nonsterile, 1/Pk SKU: SF14922

Nylon Capsule Filters - SF14922

Nylon capsule filters combine the broad chemical tolerance needed for diverse laboratory applications with the ready-to-use convenience of a self-contained, disposable filtration device. Furthermore, nylon membrane construction in the pleated capsule format delivers the effective filtration area needed for large-volume reagent preparation while maintaining the chemical versatility that defines this material. By design, the outcome is simplified regulatory documentation and reduced contamination risk, with each single-use capsule providing a validated, traceable filtration event.

Key Nylon Membrane Characteristics

• The mechanical strength of nylon membrane construction supports the operating pressures encountered in capsule filtration systems without the deformation risks associated with thinner membrane materials.
• Nylon capsule filters resist common laboratory solvents including alcohols, esters, and bases, while maintaining stable performance above pH 3 across typical processing conditions.
• Rated for operating pressures up to 75.4 psi, the capsule housing withstands the system pressures encountered in peristaltic pump, pressure vessel, and gravity-feed filtration configurations.
• The 25 milliliter holdup volume reflects the capsule's internal fluid path geometry, relevant to recovery calculations for precious samples and small-batch pharmaceutical formulations.
• Single-layer membrane construction provides direct, absolute retention at the rated pore size without the additional flow resistance introduced by upstream prefilter layers.

Key Capsule Construction Features

• Polypropylene capsule housing supports autoclave sterilization at 121 degrees Celsius and withstands gamma irradiation exposure, accommodating both user-sterilized and factory-sterilized device configurations.
• Polypropylene capsule housing provides broad chemical compatibility from pH 1 to 14, resisting the acids, bases, and process chemicals that degrade alternative housing materials.
• Polypropylene housing materials provide documented biocompatibility and low extractable profiles, supporting integration into pharmaceutical and food-processing filtration applications.
• Single-use polypropylene capsule construction eliminates cleaning validation requirements, reducing the regulatory burden and turnaround time associated with reusable stainless steel filter housings.

When your filtration protocol calls for a validated, integrity-testable barrier that arrives ready to connect and begins filtering immediately, the capsule format delivers that capability without the overhead of traditional filter assemblies. For facilities processing buffers, reagents, and mixed solvent systems, nylon capsule filters provide the chemical versatility your multi-application laboratory environment demands. Make the decision for consistency and reliability, ensuring that your laboratory maintains its reputation for high-quality, error-free output.

Sterilization Guidance

Non-sterile delivery accommodates applications where sterility is not required, while the all-polypropylene construction provides the option for autoclave sterilization when aseptic processing is specified.

For more information about chemical compatibility, please review our Chemical Compatibility Chart.

Bubble Point (psi)

23.2psi

Compliance Standards

ISO 9001

Connection Type

1/4 - 3/8 in. stepped hose barb

Construction

Polypropylene

Diameter

72mm

Dimensions

72mm x 95mm

Filling Bell (Yes/ No)

No

Filtration Area

500cm²

Flow Rate

0.62 L/min at 0.1 bar

Holdup Volume

25mL

Inlet Connection

1/4 - 3/8 in. Stepped Hose Barb

Length

95mm

Material

Nylon

Max Batch Volume

＜20L

Maximum Operating Pressure

75.4psi

Maximum Operating Temperature (°C)

80°C

Outlet Connection

1/4 - 3/8 in. Stepped Hose Barb

Pack Count

1

Pore Size (µm)

0.45

Prefilter (Yes/No)

No

Sterility

Nonsterile

Sterilization

Autoclavable at 121°C for 30 mins

Vent (Yes/ No)

Yes

Weight

0.24

Wettability

Hydrophilic

• Laboratory General - Versatile capsule filtration platform for multi-application laboratories processing diverse solution types at volume.
• Aqueous Processing - Hydrophilic membrane filtration of water-based solutions with immediate wetting and full surface area utilization.
• Buffer Filtration - Removal of particulates from biological and chemical buffers prior to analytical instrumentation or process use.
• Reagent Preparation - General-purpose filtration of laboratory reagents, buffers, and chemical solutions across aqueous and organic systems.
• Chemical Solutions - Filtration of alcohols, esters, and mild organic solvents compatible with the broad chemical tolerance of nylon membranes.
• Mixed Solvents - Filtration of aqueous-organic solvent mixtures without pre-wetting steps required by hydrophobic membrane alternatives.
