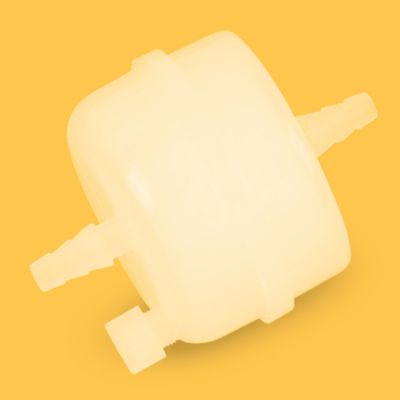

Nylon Capsule Filter, 0.10um, 72mm x 95mm, 1/4 - 3/8 in. Stepped Hose Barb, Nonsterile, 1/Pk SKU: SF14929

Nylon Capsule Filters - SF14929

The naturally hydrophilic structure of nylon capsule filters eliminates pre-wetting requirements, enabling immediate use with aqueous solutions while maintaining compatibility with most organic solvents. Naturally hydrophilic nylon membrane within the capsule housing wets immediately on contact with aqueous solutions, eliminating pre-conditioning steps and enabling rapid filtration startup for time-sensitive applications. In effect, the result is a filtration process that eliminates cleaning validation, reduces changeover time, and provides batch-to-batch consistency through factory-tested, integrity-verified devices.

Key Nylon Membrane Characteristics

• Internal holdup volume of 25 milliliters minimizes sample loss during capsule filtration, a critical consideration when processing expensive biologics or limited-volume preparations.
• The broad solvent compatibility of nylon membranes extends across aqueous, alcoholic, and many organic systems, providing a versatile capsule platform for laboratories processing diverse reagent types.
• The mechanical strength of nylon membrane construction supports the operating pressures encountered in capsule filtration systems without the deformation risks associated with thinner membrane materials.
• The non-sterile format provides the same membrane retention and flow performance as sterile variants, with the flexibility for user-controlled sterilization when process requirements dictate.
• Nylon membrane capsules offer natural hydrophilicity across their full pore structure, ensuring complete wetting with aqueous solutions without the pre-treatment steps required by hydrophobic alternatives.

Key Capsule Construction Features

• The sealed polypropylene housing is individually integrity-tested during manufacturing, verifying membrane installation and housing seal quality before the device leaves the production facility.
• Polypropylene housing materials provide documented biocompatibility and low extractable profiles, supporting integration into pharmaceutical and food-processing filtration applications.
• Polypropylene capsule housing supports autoclave sterilization at 121 degrees Celsius and withstands gamma irradiation exposure, accommodating both user-sterilized and factory-sterilized device configurations.
• Single-use polypropylene capsule construction eliminates cleaning validation requirements, reducing the regulatory burden and turnaround time associated with reusable stainless steel filter housings.

As batch volumes and regulatory expectations continue to grow, your capsule filter selection becomes a process design decision that affects sterility assurance, product recovery, and operational cost per liter filtered. To address this, when your filtration needs span aqueous solutions, alcohols, and organic mixtures, nylon membrane construction eliminates the pre-wetting steps and material compatibility checks that slow your workflow. Elevate the quality of your analytical data today by standardizing on a filtration product built to meet the exact specifications of your applications.

Sterilization Guidance

Supplied non-sterile, the polypropylene housing supports autoclave sterilization at 121 degrees Celsius for 20 minutes when aseptic filtration is required by the application protocol.

For more information about chemical compatibility, please review our Chemical Compatibility Chart.

Bubble Point (psi)

50.8psi

Compliance Standards

ISO 9001

Connection Type

1/4 - 3/8 in. stepped hose barb

Construction

Polypropylene

Diameter

72mm

Dimensions

72mm x 95mm

Filling Bell (Yes/ No)

No

Filtration Area

500cm²

Flow Rate

0.16 L/min at 0.1 bar

Holdup Volume

25mL

Inlet Connection

1/4 - 3/8 in. Stepped Hose Barb

Length

95mm

Material

Nylon

Max Batch Volume

＜20L

Maximum Operating Pressure

75.4psi

Maximum Operating Temperature (°C)

80°C

Outlet Connection

1/4 - 3/8 in. Stepped Hose Barb

Pack Count

1

Pore Size (µm)

0.1

Prefilter (Yes/No)

No

Sterility

Nonsterile

Sterilization

Autoclavable at 121°C for 30 mins

Vent (Yes/ No)

Yes

Weight

0.24

Wettability

Hydrophilic

• Aqueous Processing - Hydrophilic membrane filtration of water-based solutions with immediate wetting and full surface area utilization.
• Sample Clarification - Large-volume clarification of environmental, industrial, and laboratory samples prior to analytical testing.
• Buffer Filtration - Removal of particulates from biological and chemical buffers prior to analytical instrumentation or process use.
• Environmental Samples - Processing of water, soil extract, and environmental samples requiring both particulate removal and volume capacity.
• Mixed Solvents - Filtration of aqueous-organic solvent mixtures without pre-wetting steps required by hydrophobic membrane alternatives.
• Laboratory General - Versatile capsule filtration platform for multi-application laboratories processing diverse solution types at volume.
