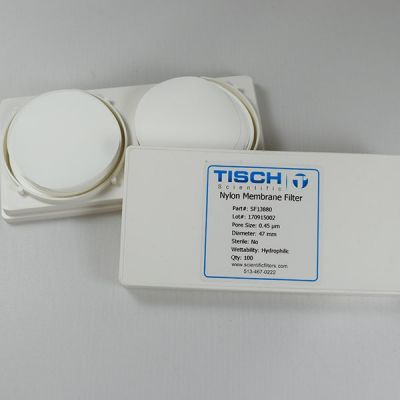

Tisch nylon membrane filters provide a universal application for analytical procedures. They are naturally hydrophilic with high protein binding and high dirt loading capability. Hydrophilic Nylon offers good chemical resistance and are most ideal for aqueous (non-acidic) or organic sample preparations, HPLC, GC, or dissolution sample analysis.
With its efficient flow characteristics, low extractable levels and mechanical stability, Nylon is the best combination of physical parameters to satisfy essentially the most rigorous analytical needs.
Tisch Product Code | SF13880 |
Filter Media | Nylon |
Pore Size | 0.45 µm |
Size | 47 mm |
Filtration area | 17.3 cm^2 |
Wettability | Hydrophilic |
Maximum Operating Temperature | 100° C |
Bubble Point | 26.1 psi |
Burst Pressure | 87 psi |
Flow Rate | 8 ml/min @10 psi |
Thickness | 110+/-10 µm |
Substrate | PET |
Sterility | Nonsterile |
Sterilization | Autoclave: 121° C for 30 minutes Gamma: 5kg, for 8 hours |
Pack Size | 200 |
Commonly Used Applications | Aqueous Solutions Solvent Based Sample Filtration Alcohols Aromatic Hydrocarbons |
Incompatible With | Acids Aggressive Organics Protein |
Need help determining the appropriate membrane Filter to use?
Check out these additional resources:
- Bubble Point
- 26.1psi.
- Burst Pressure
- 87psi.
- Diameter
- 47mm
- Filtration Area
- 17.3cm²
- Flow Rate
- 8ml/ min @ 10psi.
- Incompatibility
- Agressive Organics, Protein
- Material
- Nylon
- Maximum Operating Temperature
- 100°C
- Pack Count
- 200
- Pore Size (µm)
- 0.45
- Sterility
- Nonsterile
- Sterilization
- Autoclave: 121°C for 30 minutes/ Gamma: 5kg, for 8 hours
- Wetability
- Hydrophilic
