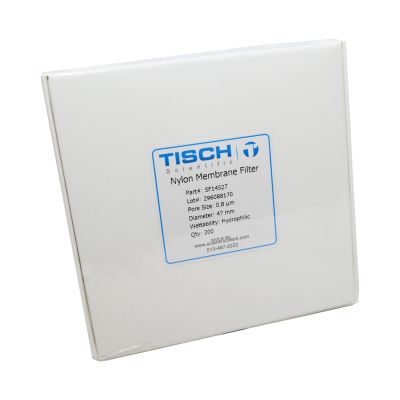

Thumbnail Filmstrip of Nylon Membrane Filter, 0.8um, 47mm, Nonsterile, 200 Pk Images
Product Details
Tisch nylon membrane filters provide a universal application for analytical procedures. They are naturally hydrophilic with high protein binding and high dirt loading capability. Hydrophilic Nylon offers good chemical resistance and are most ideal for aqueous (non-acidic) or organic sample preparations, HPLC, GC, or dissolution sample analysis.
With its efficient flow characteristics, low extractable levels and mechanical stability, Nylon is the best combination of physical parameters to satisfy essentially the most rigorous analytical needs.
Product Uses & Filtration Applications
- Aqueous Solutions
- Solvent Based Sample Filtration
- Alcohols
- Aromatic Hydrocarbons
Product Support Documents
Need Help Determining the Appropriate Membrane Filter to Use?
Check Out These Additional Resources:
| PRODUCT SPEC TABLE | |
|---|---|
| Tisch Product Code | SF14527 |
| Filtration Area | 17.3 cm^2 |
| Wettability | Hydrophilic |
| Pore Size | 0.8 µm |
| Filter Size | 47 mm |
| Filter Thickness | 110 +/- 10 µm |
| Filter Substrate | PET |
| Maximum Operating Temperature | 100° C |
| Bubble Point | 11.6 psi |
| Burst Pressure | 87 psi |
| Flow Rate | 20 ml/min @ 10 psi |
| Sterility | Nonsterile |
| Sterilization | Autoclave: 121° C for 30 Minutes Gamma: 5kg, for 8 Hours |
| Pack Size | 200 |
| Incompatible With |
Acids Aggressive Solvents Protein |
- Diameter
- 47mm
- Filtration Area
- 17.34cm²
- Grid (Yes/No)
- No
- Incompatibility
- Not recommended for use with strong acids or strong bases
- Material
- Nylon
- Maximum Operating Pressure
- 29psi
- Maximum Operating Temperature (°C)
- 60°C
- Membrane Color
- White
- Pack Count
- 200/Pk
- Pore Size (µm)
- 0.8
- Sterility
- Nonsterile
- Sterilization
- Autoclave: 121° C for 30 minutes/ Gamma 25kGy
- Weight
- 0.26
- Wetability
- Hydrophilic
