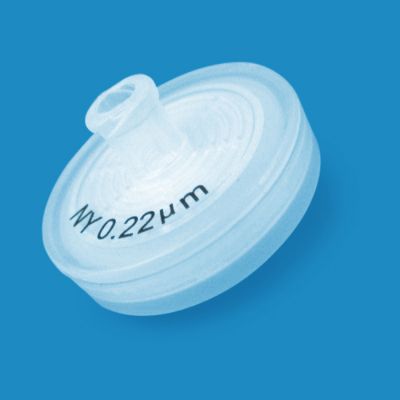

Nylon Syringe Filters w/ GD-4 Pre-Filter, 0.22um, 25mm, Nonsterile, 100/Pk SKU: GD17033

Nylon Syringe Filters - GD17033

Featuring naturally hydrophilic nylon membrane technology with an integrated GD-4 multi-layer prefiltration system for superior sterilization performance and extended filter life. The GD17033 combines certified 0.22µm sterile filtration with graded-density prefilters that capture particles progressively, preventing premature membrane clogging. Tisch Scientific syringe filters incorporate robust polypropylene housing engineered to withstand 87psi operating pressure while the four-layer design maintains consistent flow rates during challenging sterilization procedures.

Key Nylon Membrane Characteristics

• Naturally hydrophilic membrane provides immediate wettability without pre-treatment for efficient sterilization
• Certified 0.22µm final filtration ensures complete bacterial retention, meeting sterilization requirements
• GD-4 graded-density prefilter layers extend membrane life by capturing particles sequentially
• Excellent chemical compatibility supports both aqueous non-acidic and organic solvent sterilization
• Multi-layer construction maintains an 8ml/minute flow rate even with particulate-laden samples

Key Construction Characteristics

• Four-layer GD-4 prefiltration design prevents premature membrane fouling during sterile processing
• Chemical-resistant polypropylene housing withstands 87psi burst pressure, ensuring sterile integrity
• Universal Luer-Lok/Luer Slip connections guarantee compatibility with standard laboratory syringes
• Enhanced filtration capacity processes heavily contaminated samples, requiring sterilization

GD17033 syringe filters deliver exceptional sterilization performance through innovative multi-layer prefiltration that significantly extends filter life with challenging samples. Your laboratory achieves reliable sterile filtration even with particulate-laden matrices that would rapidly clog standard 0.22µm filters, optimizing both sterility assurance and operational efficiency.

For more information about chemical and material compatibility, please review our Chemical Compatibility Chart.

Bubble Point (psi)

37.5psi

Burst Pressure (psi)

87psi

Connection Type

Luer-Lok/ Luer Slip

Construction

Polypropylene (PP)

Diameter

25mm

Filtration Area

4.08cm²

Flow Rate

8.0ml

Holdup Volume

100ul

Material

Nylon

Maximum Operating Pressure

87psi

Maximum Operating Temperature (°C)

60°C

Membrane Thickness (µm)

90-120µm

Pack Count

100

Pore Size (µm)

0.22

Prefilter (Yes/No)

Yes

Prefilter Material

GF

Sterility

Nonsterile

Sterilization

Autoclave: 121° C for 30 minutes/ Gamma: 5kg, for 8 hours

Volume Throughput (ml)

100ml

Wetability

Hydrophilic

• Complex Media Sterilization - Provides bacterial removal from particulate-laden culture media preparations
• Serum Sterilization - Processes protein-rich samples while maintaining sterile filtration efficiency
• Environmental Sample Sterilization - Ensures microbial removal from sediment-containing water samples
• Pharmaceutical Sterilization - Delivers validated sterility for turbid drug formulations
• Biological Extract Processing - Sterilizes tissue homogenates with high particulate content
• Challenging Sample Sterilization - Maintains sterile filtration when standard filters would clog
