Nylon Syringe Filters, 0.22 um, 17mm, Luer-Lok/Luer Slip, Nonsterile, 100/Pk

Thumbnail Filmstrip of Nylon Syringe Filters, 0.22 um, 17mm, Luer-Lok/Luer Slip, Nonsterile, 100/Pk Images

    Purchase Nylon Syringe Filters, 0.22 um, 17mm, Luer-Lok/Luer Slip, Nonsterile, 100/Pk

    Nylon Syringe Filters, 0.22 um, 17mm, Luer-Lok/Luer Slip, Nonsterile, 100/Pk
    Tisch SKU: SF15590

    $90.95
    Ships in 4 weeks

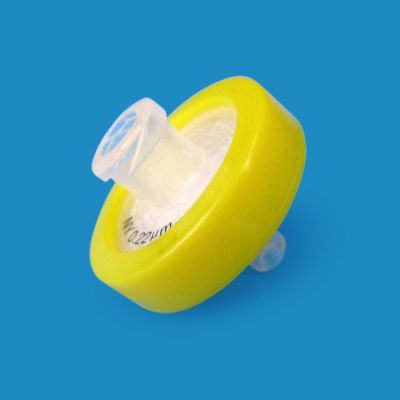

    Tisch Scientific Nylon Syringe Filters, 0.22 µm, 17 mm, 100/Pk - SF15590

    Tisch Scientific's product lineup extends from filtration membranes to devices and the consumable supplies laboratories use daily. A sterilizing-grade syringe filter delivers point-of-use sterile filtration in a single-use format, without the housing and gasket maintenance a reusable stainless steel filter holder requires. Nylon wets on contact with aqueous samples while holding sterile-rated retention across the envelope and fits routine analytical sample preparation. The polypropylene housing preserves sample chemistry across the flow path while standing firm against aqueous acids, bases, and alcohols during regular handling and routes flow to minimize backpressure in service. Where bacterial contamination must stay out of the sample, manufacturer-tested retention keeps the instrument and downstream assay protected without a housing to maintain or clean.

    Membrane Characteristics

    • Common ketone solvents, including acetone, methyl ethyl ketone, and methyl isobutyl ketone, cause no attack
    • Hydrophilic surface takes up aqueous samples with no pre-wetting
    • Non-fibrous membrane structure resists media shedding into the filtrate
    • Polar amide backbone gives high native affinity for nucleic acids
    • Tortuous, reticulated pore structure yields more usable filtration area than capillary-pore membranes

    Housing Characteristics

    • Withstands standard 121°C steam autoclave cycles without softening or structural distortion
    • Minimal extractable release from the housing supports sensitive analytical work downstream
    • Stable across the full aqueous pH range in routine sample work
    • Minimal intrinsic autofluorescence from the polypropylene housing supports background-sensitive fluorescence-based assay work downstream

    Fine particulates that slip through raise your system backpressure and bring maintenance forward. Reliable particulate removal protects your instruments and your data before each HPLC, UHPLC, and dissolution run. Request comparable filtration options that may offer cost savings for your order from the Tisch Scientific team.

    Sterilization Guidance

    Customer autoclave compatibility at 121°C accommodates in-lab sterilization timing.

    For more information about chemical compatibility, please review our Chemical Compatibility Chart.

    Bubble Point (psi)
    37.5psi
    Burst Pressure (psi)
    87psi
    Connection Type
    Luer-Lok/Luer Slip
    Construction
    Polypropylene (PP)
    Diameter
    17mm
    Filtration Area
    1.65cm²
    Flow Rate
    3.5ml
    Holdup Volume
    20ul
    Incompatibility
    Acids, agressive organics, protein
    Material
    Nylon
    Maximum Operating Pressure
    87psi
    Maximum Operating Temperature (°C)
    60°C
    Membrane Thickness (µm)
    90-120µm
    Pack Count
    100
    Pore Size (µm)
    0.22
    Prefilter (Yes/No)
    Yes
    Prefilter Material
    GF
    Sterility
    Nonsterile
    Sterilization
    Autoclave: 121° C for 30 minutes/ Gamma: 5kg, for 8 hours
    Volume Throughput (ml)
    20ml
    Weight
    0.33
    Wettability
    Hydrophilic
    • Fermentation Monitoring - Clarifies samples from microbial fermentation for rapid analyte measurement of glucose, ethanol, and metabolite levels.
    • IC Column Protection - Clarifies aqueous samples ahead of anion and cation analysis, guarding ion-exchange columns against particulate fouling.
    • HPLC Sample Prep - Clarifies mixed aqueous and organic solvents to ensure stable baselines and protect chromatography columns from clogging.
    • Cosmetics Batch Testing - Filters aqueous lotions, serums, and personal care products for particulate QC and potency assay sampling.
    • Dissolution Testing - Supports accurate drug release profiles by clarifying dissolution samples ahead of HPLC quantitation in QC labs.
    • Ink and Dye Filtration - Filters aqueous and solvent-based inks and dyes, removing pigment agglomerates ahead of color strength analysis.
