Nylon Syringe Filters, w/ Glass PreFilter, 0.45um, 25mm, Luer-Lok/Luer Slip, 100Pk

Thumbnail Filmstrip of Nylon Syringe Filters, w/ Glass PreFilter, 0.45um, 25mm, Luer-Lok/Luer Slip, 100Pk Images

    Purchase Nylon Syringe Filters, w/ Glass PreFilter, 0.45um, 25mm, Luer-Lok/Luer Slip, 100Pk

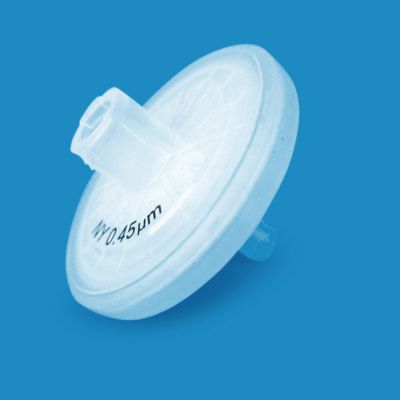

    Nylon Syringe Filters, w/ Glass PreFilter, 0.45um, 25mm, Luer-Lok/Luer Slip, 100Pk
    Tisch SKU: SF18164

    $118.95
    Only 7 in stock. Order now!


    Tisch Scientific Nylon Syringe Filters, 0.45 µm, 25 mm, 100/Pk - SF18164

    Tisch Scientific holds its filtration pricing at levels that let budget-conscious laboratories stretch procurement dollars further. A syringe filter dispenses filtrate directly into an autosampler vial, without the intermediate collection vessel a bulk vacuum filtration setup typically needs. The nylon membrane clarifies particulates at the rated pore size and withstands elevated differential pressures. The polypropylene housing presses snugly against the membrane during the pass while keeping sample purity intact through the filtration pass and maintains a low-dead-volume internal flow path. Where small-volume samples must reach the instrument clean, low hold-up volume keeps sample loss minimal while the instrument stays protected from particulate damage.

    Prefiltration

    • Added glass fiber stage extends usable throughput by delaying membrane clogging
    • Depth-loading glass fiber matrix captures particulate throughout its full thickness
    • High dirt-holding capacity suits very turbid, high-solids sample loads
    • Two-stage construction pairs a borosilicate glass fiber prefilter with the downstream membrane

    Membrane Characteristics

    • Tortuous, reticulated pore structure yields more usable filtration area than capillary-pore membranes
    • Absolute pore size rating holds consistent across every protocol
    • Alkaline-resistant across a broad range of aqueous buffers
    • Amorphous-crystalline nylon blend composition doubles membrane burst strength over homopolymer nylon
    • Moisture-plasticized amide linkages raise membrane impact toughness over dry resin

    Housing Characteristics

    • Thermal-bonded construction keeps adhesives out of the fluid path
    • The seal formed against the membrane blocks bypass at rated operating pressure
    • Standardized luer connection geometry provides secure engagement with standard syringe tips
    • Minimal extractable release from the housing supports sensitive analytical work downstream

    Juggling several filter types for one routine clarification eats up your bench time. Consistent aqueous clarification clears particulates without slowing your bench routine across the buffers and reagents your day-to-day prep depends on. Request details on payment terms or standing-order arrangements for your routine filtration purchases.

    Sterilization Guidance

    The housing supports customer autoclave sterilization at 121°C for 30 minutes.

    For more information about chemical compatibility, please review our Chemical Compatibility Chart.

    Bubble Point (psi)
    23.0psi
    Burst Pressure (psi)
    87psi
    Connection Type
    Luer-Lok/Luer Slip
    Construction
    Polypropylene (PP)
    Diameter
    25mm
    Filtration Area
    4.08cm²
    Flow Rate
    24.0ml
    Holdup Volume
    100ul
    Incompatibility
    Acids, agressive organics, protein
    Material
    Nylon
    Maximum Operating Pressure
    87psi
    Maximum Operating Temperature (°C)
    60°C
    Membrane Thickness (µm)
    90-120µm
    Pack Count
    100
    Pore Size (µm)
    0.45
    Prefilter (Yes/No)
    Yes
    Prefilter Material
    GF
    Sterility
    Nonsterile
    Sterilization
    Autoclave: 121° C for 30 minutes/ Gamma: 5kg, for 8 hours
    Volume Throughput (ml)
    100ml
    Weight
    0.52
    Wettability
    Hydrophilic
    • Beverage QC Clarification - Clarifies wine, beer, and juice samples ahead of analytical and microbiological testing in quality control labs.
    • GC Sample Prep - Clarifies aqueous and organic extracts ahead of gas chromatography injection, protecting inlets from particulate fouling.
    • Environmental Extract Prep - Clarifies water and soil extracts ahead of trace metals or pesticide-residue analysis for accurate results.
    • Drinking Water Analysis - Clarifies tap and source water samples ahead of metals, nitrate, and trace-contaminant compliance testing.
    • IC Column Protection - Clarifies aqueous samples ahead of anion and cation analysis, guarding ion-exchange columns against particulate fouling.
    • Biofuel Particulate Testing - Removes particulate debris from biodiesel and fuel samples ahead of chromatographic QC analysis in fuel testing labs.
