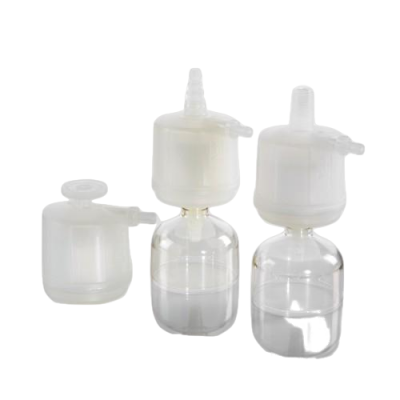

AcroPak 200 Capsules w/ Supor EKV Membrane - 0.2um (3/Pkg) SKU: 12094

Supor (PES) Capsule Filters - 12094

Supor PES capsule filters provide consistent membrane performance from laboratory evaluation through pilot and full production batch volumes within a single validated platform. Optimized for laboratory use, the Supor PES membrane's asymmetric pore architecture delivers industry-leading flow rates and throughput capacity in a validated sterilizing-grade format backed by comprehensive pharmaceutical documentation packages. Together, the outcome is a validated filtration barrier that arrives ready for process integration, supporting the single-use manufacturing strategies adopted by modern pharmaceutical and biotechnology facilities.

Key Supor (PES) Membrane Characteristics

• Non-sterile configuration accommodates laboratory and industrial applications where the capsule filter serves a clarification or protection function rather than a sterilizing-grade barrier role.
• The asymmetric Supor membrane structure maximizes dirt-holding capacity and flow rates, delivering throughput performance that reduces the number of capsule devices required per batch.
• The Supor membrane platform provides consistent filtration performance across capsule formats from laboratory-scale evaluation devices through production-scale large-volume capsules.
• Internal holdup volume of 6 milliliters minimizes sample loss during capsule filtration, a critical consideration when processing expensive biologics or limited-volume preparations.
• Supor capsule devices are constructed from materials with documented biocompatibility and low extractable characteristics suitable for pharmaceutical manufacturing processes.

Key Capsule Construction Features

• Polypropylene capsule housing supports autoclave sterilization at 121 degrees Celsius and withstands gamma irradiation exposure, accommodating both user-sterilized and factory-sterilized device configurations.
• The sealed polypropylene housing is individually integrity-tested during manufacturing, verifying membrane installation and housing seal quality before the device leaves the production facility.
• Thermally fused polypropylene construction eliminates adhesives, binders, and O-rings from the fluid path, reducing extractable contamination and simplifying material qualification.
• Polypropylene capsule housing provides broad chemical compatibility from pH 1 to 14, resisting the acids, bases, and process chemicals that degrade alternative housing materials.

As single-use filtration continues to replace reusable housings across pharmaceutical and laboratory environments, your capsule filter selection determines both the quality of the filtrate and the efficiency of the workflow. For biopharmaceutical manufacturing where retention validation and product recovery are equally critical, Supor membrane technology delivers the documented performance and ultra-low binding your process demands. Make the decision for consistency and reliability, ensuring that your laboratory maintains its reputation for high-quality, error-free output.

Sterilization Guidance

Non-sterile delivery accommodates applications where sterility is not required, while the all-polypropylene construction provides the option for autoclave sterilization when aseptic processing is specified.

For more information about chemical compatibility, please review our Chemical Compatibility Chart.

Bubble Point (psi)

48 psi

Burst Pressure (psi)

60 psi

Capsule Format

AcroPak 200

Compliance Standards

USP Class VI <88>; Endotoxin < 0.25 EU/mL (LAL)

Construction

Polypropylene

Diameter

6.4 - 12.7 cm

Filling Bell (Yes/ No)

Yes

Filtration Area

200 cm²

Flow Rate

0.241 L/min at 0.1 bar

Holdup Volume

≤6 mL

Inlet Connection

Hose barb

Length

10.5 cm

Material

PES

Max Batch Volume

20 L

Maximum Operating Pressure

60 psi

Maximum Operating Temperature (°C)

60 °C

Membrane Brand

Supor EKV

Outlet Connection

Stepped Hose Barb

Pack Count

3

Pore Size (µm)

0.2

Prefilter (Yes/No)

No

Sterility

Nonsterile

Sterilization

Autoclave

Vent (Yes/ No)

Yes

Wettability

Hydrophilic

• Process Compatibility - Supor PES membrane exhibits broad compatibility with aqueous buffers, aliphatic alcohols, and glycols across pH 1-14.
• Validation Support - Comprehensive manufacturer documentation including extractable profiles and bacterial challenge test data supports integration into regulated processes.
• Biologics Processing - Ultra-low binding PES membrane preserves therapeutic protein concentrations through production-scale processing.
• Cell Culture Media - High-throughput filtration of tissue culture media with flow rates optimized for large-volume batch processing.
• Buffer Systems - Broad pH compatibility from 1 to 14 supports validated filtration across the full range of pharmaceutical buffer solutions.
• Scale-Up Filtration - Consistent Supor membrane performance from laboratory evaluation through pilot and full production batch volumes.
