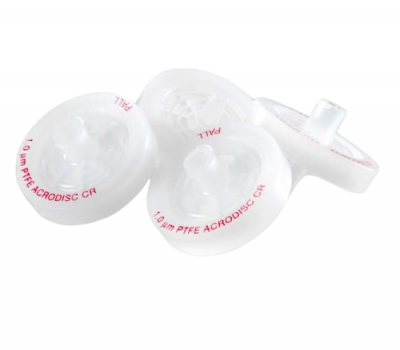

Acro Disc Syringe Filters w/ PTFE Membrane - 0.2um, 13mm, Minispike Outlet, 300/Pk
Pall SKU: 4552

Pall Acrodisc PTFE Syringe Filters, 0.2 µm, 13 mm, 300/Pk - 4552

Pall applies its proprietary membrane manufacturing capabilities, integrating specialized media into the Acrodisc housing geometry. Under hand pressure from the syringe, the membrane captures particulates as the sample passes through. Hydrophobic PTFE repels water while passing gases and solvents freely while resisting attack from the harshest process chemistries and delivers sterilizing-grade gas and vent filtration. The PP housing keeps the fluid path low in extractable contamination and prevents sample bypass under rated operating pressure. When method reproducibility rests on consistent sample prep, syringe filtration holds that standard injection after injection.

Technical Specifications

• Low extractables keep the chromatographic background clean
• Sterilizing-grade gas and vent filtration at sub-micron pore sizes
• Filters aggressive organic solvents without swelling or breakdown
• Hydrophobic membrane repels water for gas, vent, and solvent filtration
• Chemically inert against aggressive solvents, strong acids, and alkalis

Housing Specifications

• Optimized internal geometry minimizes backpressure in service
• Medical-grade polypropylene with broad chemical compatibility
• Thermal-bonded construction keeps adhesives out of the fluid path
• Resists stress cracking from aqueous salt and buffer solutions

Clarifying organic mobile phases before injection protects your chromatography while standing up to the solvent. Solvent-stream filtration handles the solvents and reagents your methods rely on across the organic solvents and harsh reagents your methods use. Review our Chemical Compatibility Chart, or ask technical service to confirm chemical compatibility for your specific application.

For more information about chemical compatibility, please review our Chemical Compatibility Chart.

Bubble Point (psi)

15psi (IPA)

Burst Pressure (psi)

100psi

Connection Type

Luer-Lock/ Minispike

Construction

Polypropylene (PP)

Diameter

13mm

Filtration Area

1.0cm²

Flow Rate

10ml

Holdup Volume

< 14 µL

Material

Polytetrafluoroethylene (PTFE)

Maximum Operating Pressure

60psi

Maximum Operating Temperature (°C)

100°C

Pack Count

300

Pore Size (µm)

0.2

Sterility

Nonsterile

Sterilization

Autoclavable at 121°C for 15-20 min

Wettability

Hydrophobic

• Air Monitoring - Ensures precise capture of airborne particulates for environmental analysis in challenging atmospheric monitoring conditions
• Moisture Barrier - Protects sensitive electronic sensors and instruments from aqueous aerosols while allowing gases to pass freely
• Venting Applications - Prevents moisture and particulate intrusion in sterile tanks and vessels, ensuring a contaminant-free storage environment
• Aggressive Solvents - Clarifies chlorinated hydrocarbons and aromatics without membrane degradation, ensuring pure filtrate quality every time
• Gas Filtration - Ensures sterility in air and gas lines for fermentation tanks, preventing the introduction of airborne contaminants
• Pump Protection - Acts as a reliable hydrophobic barrier to protect vacuum pumps from corrosive moisture damage and particulate contamination
