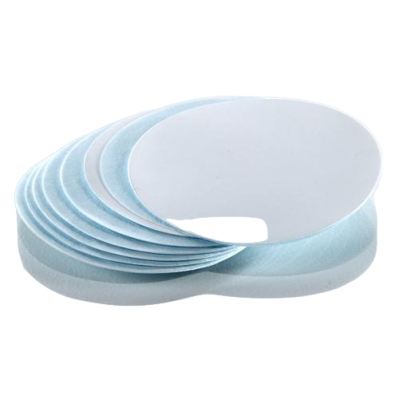

Supor 800 Membrane Disc Filters, 0.8um - 25mm, Plain, 100/Pk SKU: 60109

Supor (PES) Membrane Filters - 60109

The Pall 60109 combines a controlled pore size distribution with low extractable levels, ensuring the data accuracy that sensitive analytical methods require. Engineered for demanding applications, full pH compatibility from 1 to 14 allows Supor membranes to handle acidic mobile phases, neutral buffers, and alkaline cleaning solutions without performance degradation. In turn, each membrane disc reflects a manufacturing standard where retention characteristics, physical integrity, and dimensional accuracy are verified before release.

Material Specifications

• Thermal stability of the membrane material allows safe operation at temperatures up to 55°C without degradation of retention characteristics or dimensional integrity.
• Rigorous quality controls validate retention performance at rated pore sizes, positioning Supor as a primary membrane choice for critical filtration in biopharmaceutical production.
• Ultra-low protein binding preserves the biological activity of growth factors, cytokines, and other sensitive proteins during membrane passage.
• Broad chemical compatibility across pH 1–14 enables Supor membranes to process acidic, neutral, and alkaline solutions without membrane degradation.
• Economical bulk packaging supports laboratories with high consumable throughput where individual sterile wrapping is unnecessary.

Multi-site studies where different laboratories must produce comparable data benefit from membranes manufactured to tight specifications, giving you confidence that site-to-site variability is not introduced by the filtration step. In this context, the chemical compatibility range documented for this device allows you to verify suitability for your specific sample matrix before processing, avoiding the mid-filtration failures that waste both sample and time. Elevate the quality of your analytical data today by standardizing on a filtration product built to meet the exact specifications of your applications.

For more information about chemical compatibility, please review our Chemical Compatibility Chart.

Bubble Point (psi)

13psi

Color

White

Diameter

25mm

Extractables

< 2% (Passes USP Class VI)

Filtration Area

4.08cm²

Flow Rate

400 mL/min/cm²

Grid (Yes/No)

No

Material

Polyethersulfone (PES)

Maximum Operating Pressure

75psi

Maximum Operating Temperature (°C)

55°C

Membrane Thickness (µm)

130 – 160µm

Pack Count

100

pH Range

1-14

Pore Size (µm)

0.8

Sterility

Nonsterile

Sterilization

Autoclavable at 121°C for 15-20 min

Support Material

N/A

Wettability

Hydrophilic

• Gene Therapy Buffers - Filters large volumes of viral vector buffers with low protein binding, preserving the viral titer effectively.
• Bioprocess Clarification - Supor disc membranes remove fine particulates from cell culture harvests, protecting downstream purification steps.
• Stem Cell Media Prep - Filters viscous, growth-factor-rich media without clogging, preserving the critical nutrients needed for cell health.
• Diagnostic Kit Reagents - Clarifies high-value diagnostic buffers in manufacturing, ensuring lot-to-lot consistency and particle-free reagents.
• Automated Media Fill - Integrated into automated media dispensing systems, providing reliable flow rates that prevent machine timeouts.
• Exosome Purification - Clarifies cell supernatants prior to exosome isolation, removing cellular debris without trapping the nanovesicles.
