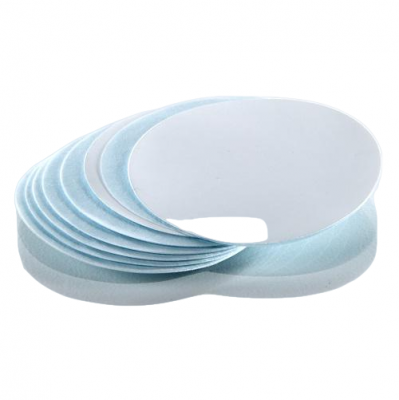

Supor 450Membrane Disc Filters, 0.45um - 25mm, Plain, 100/Pk SKU: 60172

Supor (PES) Membrane Filters - 60172

The Pall 60172 protects sensitive instrumentation and sample integrity by providing reliable particulate removal with minimal analyte adsorption or background interference. Developed with critical workflows in mind, full pH compatibility from 1 to 14 allows Supor membranes to handle acidic mobile phases, neutral buffers, and alkaline cleaning solutions without performance degradation. Each membrane disc reflects a manufacturing standard where retention characteristics, physical integrity, and dimensional accuracy are verified before release.

Material Specifications

• Broad chemical compatibility across pH 1–14 enables Supor membranes to process acidic, neutral, and alkaline solutions without membrane degradation.
• Consistent lot-to-lot performance supports standardized filtration protocols, reducing the revalidation burden when transitioning between production lots.
• Asymmetric pore architecture concentrates the retentive skin at the upstream surface while maintaining an open substructure for sustained throughput under vacuum or pressure.
• Rigorous quality controls validate retention performance at rated pore sizes, positioning Supor as a primary membrane choice for critical filtration in biopharmaceutical production.
• Supor polyethersulfone membranes deliver the highest flow rates in the PES membrane class, reducing vacuum filtration time for high-volume laboratory applications.

Air monitoring and stack emissions sampling demand a filter medium that withstands the conditions at your collection point. The material properties above define that operating envelope. For this application, complete specification documentation for this device supports the traceability requirements of your quality system, providing the recorded evidence of consumable performance that auditors and method reviewers expect to see. Take control of your sample preparation variables and ensure that your data reflects the true nature of your work, rather than the quality of your consumables.

For more information about chemical compatibility, please review our Chemical Compatibility Chart.

Bubble Point (psi)

33psi

Color

White

Diameter

25mm

Extractables

< 2% (Passes USP Class VI)

Filtration Area

4.08cm²

Flow Rate

65 mL/min/cm²

Grid (Yes/No)

No

Material

Polyethersulfone (PES)

Maximum Operating Pressure

75psi

Maximum Operating Temperature (°C)

55°C

Membrane Thickness (µm)

130 – 160µm

Pack Count

100

pH Range

1-14

Pore Size (µm)

0.45

Sterility

Nonsterile

Sterilization

Autoclavable at 121°C for 15-20 min

Support Material

N/A

Wettability

Hydrophilic

• Diagnostic Kit Reagents - Clarifies high-value diagnostic buffers in manufacturing, ensuring lot-to-lot consistency and particle-free reagents.
• Gene Therapy Buffers - Filters large volumes of viral vector buffers with low protein binding, preserving the viral titer effectively.
• Stem Cell Media Prep - Filters viscous, growth-factor-rich media without clogging, preserving the critical nutrients needed for cell health.
• Buffer Filtration - Provides fast flow rates and low protein binding, ideal for the rapid processing of laboratory buffers and solutions.
• Bioprocess Clarification - Supor disc membranes remove fine particulates from cell culture harvests, protecting downstream purification steps.
• Automated Media Fill - Integrated into automated media dispensing systems, providing reliable flow rates that prevent machine timeouts.
