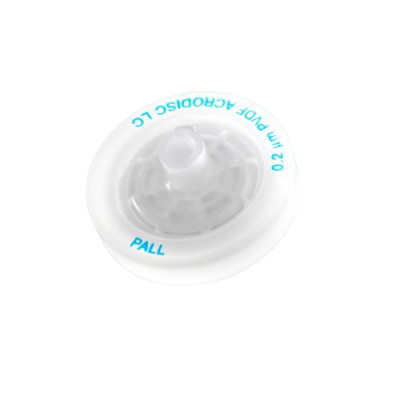

Pall Acrodisc PVDF Syringe Filters, 0.2 µm, 25 mm, 1000/Pk - AP-4794
Pall's proprietary membrane manufacturing capabilities put specialized media into the Acrodisc housing geometry. A sterilizing-grade syringe filter carries manufacturer bacterial retention testing built into the design, giving analysts documented sterile-grade performance without repeating that testing in-house for the format. A hydration layer at the pore surface keeps HPLC analytes from adhering while resisting HPLC mobile phases, alcohols, and mild hydrocarbons and achieves sterile-grade retention at sub-micron pore sizes. The polypropylene housing presses snugly against the membrane during the pass while shedding virtually no extractable material into the sample and stays inert across common laboratory solvents. For workflows requiring validated sterile-grade performance, point-of-use retention meets it without a separate sterilization step.
Prefiltration
- Two-stage construction pairs a borosilicate glass fiber prefilter with the downstream membrane
- Naturally hydrophilic borosilicate fiber wets quickly with aqueous samples
- Glass fiber prefilter stage sustains flow through particle-laden, hard-to-filter samples
- Depth-loading glass fiber matrix captures particulate throughout its full thickness
Membrane Characteristics
- Fluorinated polymer chemistry resists ozone, UV, and ionizing radiation
- Chemical compatibility spans the full pH 1 to 14 range
- Organic solvent resistance beats PES or nylon at comparable pore size
- Hydrochloric, dilute nitric, and up to 90% sulfuric acid cause no attack
- Aqueous and HPLC samples wet the surface without pre-wetting
Housing Characteristics
- Optimized internal geometry minimizes backpressure in service
- Minimal extractable release from the housing supports sensitive analytical work downstream
- Housing rated for warm-sample filtration above standard laboratory temperature without softening or seal loss
- The seal formed against the membrane blocks bypass at rated operating pressure
A column clogging mid-run from unfiltered sample can cost you the rest of your analytical day. Pre-injection filtration protects the resolution your methods depend on so your retention times and peak shapes stay consistent. Request a Certificate of Analysis for a specific Pall lot number from our support team.
Sterilization Guidance
Customer autoclave compatibility at 121°C accommodates in-lab sterilization timing.
For more information about chemical compatibility, please review our Chemical Compatibility Chart.
- Bubble Point (psi)
- 39psi
- Burst Pressure (psi)
- 60psi
- Connection Type
- Luer-Lock/ Luer Slip
- Construction
- Polypropylene (PP)
- Diameter
- 25mm
- Filtration Area
- 3.9cm²
- Flow Rate
- 50ml
- Holdup Volume
- < 100 µL
- Material
- Polyvinylidene Difluoride (PVDF)
- Maximum Operating Pressure
- 75psi
- Maximum Operating Temperature (°C)
- 82°C
- Pack Count
- 1000
- Pore Size (µm)
- 0.2
- Sterility
- Nonsterile
- Sterilization
- Autoclavable at 121°C for 15-20 min
- Wettability
- Hydrophobic
- Microbiome Sampling - Concentrates waterborne microbial cells on a low-binding membrane ahead of DNA extraction and metagenomics sequencing.
- Mycotoxin Screening - Clarifies grain and food extracts ahead of HPLC analysis, supporting reliable detection of aflatoxins and other mycotoxins.
- IC Guard Filtration - Removes particulates from aqueous samples before ion analysis, keeping detector cells free of fouling between injections.
- Spectroscopy Prep - Provides optical clarity and low background interference, ideal for UV-Vis and fluorescence sample preparation work.
- Pharmaceutical QC - Supports routine quality control testing by reliably filtering mild organic solvent mixtures and drug formulations daily.
- Beverage QC - Clarifies wine, beer, and juice samples ahead of HPLC testing for organic acids, sugars, and preservatives.
