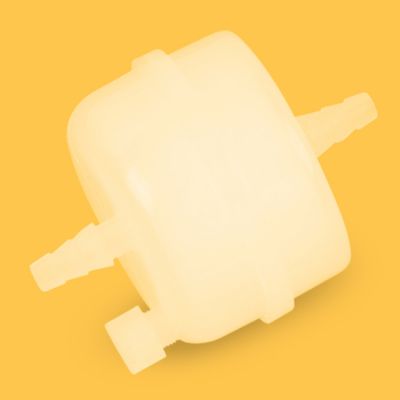

PES Capsule Filter, 0.10um, 72mm x 95mm, 1/4 - 3/8 in. Stepped Hose Barb, Nonsterile, 1/Pk SKU: SF14949

Polyethersulfone (PES) Capsule Filters - SF14949

Ultra-low protein binding and broad pH compatibility from 1 to 14 make PES capsule filters the preferred membrane choice for processing biological solutions at production scale. Asymmetric PES membrane construction captures contaminants at the upstream surface while maintaining open pore channels beneath, extending capsule service life and reducing the frequency of mid-batch device changes. As a result, the result is a filtration workflow that scales efficiently from method development through production, delivering consistent retention performance across the full range of capsule effective filtration areas.

Key Polyethersulfone (PES) Membrane Characteristics

• The asymmetric pore structure of PES membranes captures contaminants at the upstream surface while maintaining open downstream channels, extending capsule throughput before reaching differential pressure limits.
• Single-membrane construction simplifies integrity test interpretation, as the bubble point and diffusion flow values correspond directly to the rated retention membrane without prefilter interference.
• PES capsule filters achieve flow rates that support large-batch processing without the mid-run device changes that disrupt sterile workflows and introduce contamination risk.
• Capsule holdup volume of 25 milliliters represents the fluid retained within the device after filtration, an important factor when calculating yield for high-value pharmaceutical products.
• The inherently hydrophilic PES membrane wets immediately on contact with aqueous solutions, eliminating alcohol pre-flush steps and reducing both startup time and solvent waste.

Key Capsule Construction Features

• Polypropylene capsule housing provides broad chemical compatibility from pH 1 to 14, resisting the acids, bases, and process chemicals that degrade alternative housing materials.
• The sealed polypropylene housing is individually integrity-tested during manufacturing, verifying membrane installation and housing seal quality before the device leaves the production facility.
• Single-use polypropylene capsule construction eliminates cleaning validation requirements, reducing the regulatory burden and turnaround time associated with reusable stainless steel filter housings.
• Thermally fused polypropylene construction eliminates adhesives, binders, and O-rings from the fluid path, reducing extractable contamination and simplifying material qualification.

From method development through scale-up to production, your capsule filter choice defines the balance between membrane performance, process integration, and the regulatory documentation trail that supports each filtration event. To address this, when your filtration protocol demands both validated retention and maximum product recovery, PES membrane architecture balances performance with the low-adsorption surface chemistry your biologics require. Elevate the quality of your analytical data today by standardizing on a filtration product built to meet the exact specifications of your applications.

Sterilization Guidance

Standard autoclave cycles at 121 degrees Celsius are compatible with the polypropylene housing and membrane assembly, allowing preparation for sterile applications at the point of use.

For more information about chemical compatibility, please review our Chemical Compatibility Chart.

Bubble Point (psi)

58psi

Compliance Standards

ISO 9001

Connection Type

1/4 - 3/8 in. stepped hose barb

Construction

Polypropylene

Diameter

72mm

Dimensions

72mm x 95mm

Filling Bell (Yes/ No)

No

Filtration Area

500cm²

Flow Rate

0.6 L/min at 0.1 bar

Holdup Volume

25mL

Inlet Connection

1/4 - 3/8 in. Stepped Hose Barb

Length

95mm

Material

PES

Max Batch Volume

＜20L

Maximum Operating Pressure

75.4psi

Maximum Operating Temperature (°C)

80°C

Outlet Connection

1/4 - 3/8 in. Stepped Hose Barb

Pack Count

1

Pore Size (µm)

0.1

Prefilter (Yes/No)

No

Sterility

Nonsterile

Sterilization

Autoclavable at 121°C for 30 mins

Vent (Yes/ No)

Yes

Weight

0.24

Wettability

Hydrophilic

• Water Purification - Membrane-grade filtration of purified water and water-for-injection systems in pharmaceutical manufacturing facilities.
• Serum Processing - Capsule filtration of animal sera and biological supplements for cell culture and diagnostic reagent applications.
• Reagent Filtration - Removal of particulates and contaminants from laboratory reagents and process solutions before downstream use.
• Buffer Processing - Large-volume filtration of pharmaceutical buffers and process solutions with broad pH compatibility across pH 1-14.
• Process Intermediates - In-line capsule filtration of pharmaceutical intermediates with validated retention and low adsorptive losses.
• Biologics Protection - Ultra-low protein binding preserves antibody and growth factor concentrations through the membrane retention step.
