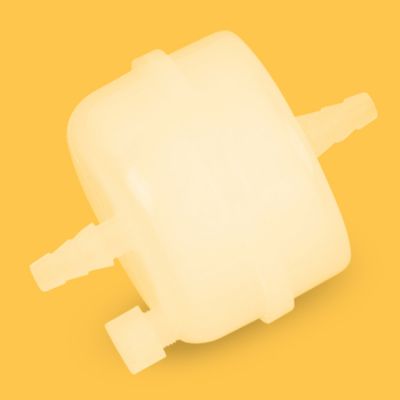

PES Capsule Filter, 0.22um, 72mm x 95mm, 1/4 - 3/8 in. Stepped Hose Barb, Nonsterile, 1/Pk SKU: SF14951

Polyethersulfone (PES) Capsule Filters - SF14951

PES capsule filters combine asymmetric membrane architecture with ultra-low protein adsorption, maximizing throughput while preserving the biological activity of filtered solutions. Equally important, PES membrane chemistry delivers broad pH compatibility from 1 to 14, supporting filtration of buffers, media, and cleaning solutions through a single capsule platform without material degradation. The result is a filtration workflow that scales efficiently from method development through production, delivering consistent retention performance across the full range of capsule effective filtration areas.

Key Polyethersulfone (PES) Membrane Characteristics

PES membrane capsules deliver broad pH compatibility from 1 to 14, accommodating the full range of buffers, media, and cleaning solutions encountered in biopharmaceutical processing.
The asymmetric pore structure of PES membranes captures contaminants at the upstream surface while maintaining open downstream channels, extending capsule throughput before reaching differential pressure limits.
The non-sterile format provides the same membrane retention and flow performance as sterile variants, with the flexibility for user-controlled sterilization when process requirements dictate.
Ultra-low protein binding characteristics of the PES membrane minimize adsorptive losses, preserving the concentration and biological activity of filtered proteins, antibodies, and growth factors.
Single-layer membrane construction provides direct, absolute retention at the rated pore size without the additional flow resistance introduced by upstream prefilter layers.

Key Capsule Construction Features

Polypropylene capsule housing supports autoclave sterilization at 121 degrees Celsius and withstands gamma irradiation exposure, accommodating both user-sterilized and factory-sterilized device configurations.
Polypropylene housing materials provide documented biocompatibility and low extractable profiles, supporting integration into pharmaceutical and food-processing filtration applications.
Polypropylene capsule housing provides broad chemical compatibility from pH 1 to 14, resisting the acids, bases, and process chemicals that degrade alternative housing materials.
The sealed polypropylene housing is individually integrity-tested during manufacturing, verifying membrane installation and housing seal quality before the device leaves the production facility.

When your filtration protocol calls for a validated, integrity-testable barrier that arrives ready to connect and begins filtering immediately, the capsule format delivers that capability without the overhead of traditional filter assemblies. For applications like these, if your process involves aqueous biologicals, the ultra-low protein binding and broad pH compatibility of PES membrane construction protect your product while sustaining the flow rates your batch schedule requires. Secure your research outcomes by partnering with a filtration solution that understands your need for speed, accuracy, and reproducibility.

Sterilization Guidance

Supplied non-sterile, the polypropylene housing supports autoclave sterilization at 121 degrees Celsius for 20 minutes when aseptic filtration is required by the application protocol.

For more information about chemical compatibility, please review our Chemical Compatibility Chart.
