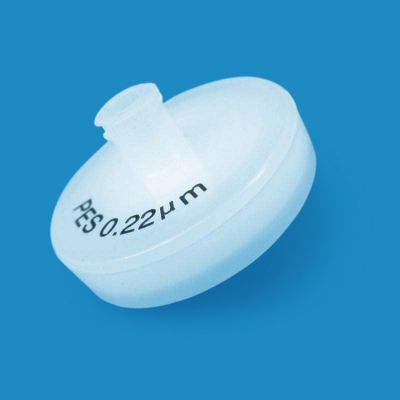

Polyethersulfone Syringe Filters, 25mm, 0.22 um, w/ GD-4 Pre-Filter, Nonsterile, 100/Pk SKU: GD17167

Polyethersulfone (PES) Syringe Filters - GD17167

Featuring advanced polyethersulfone membrane technology combined with GD-4 glass fiber prefiltration for reliable bacterial removal and sterilization applications. Nonsterile 0.22µm absolute pore rating provides complete microbial retention while maintaining high flow rates through challenging sample matrices. Tisch Scientific integrates hydrophilic PES membranes with robust dual-layer construction, enabling autoclave sterilization at 121°C when sterility assurance is required.

Key Polyethersulfone (PES) Membrane Characteristics

• Naturally hydrophilic membrane delivers instant wetting without surfactants or pre-treatment
• Exceptional chemical resistance tolerates aggressive solvents and pH extremes from 1-14
• Low protein binding preserves sample concentration and maintains biological activity
• 0.22µm absolute pore size ensures complete bacterial and microorganism removal
• Autoclavable construction allows sterilization at 121°C for 30 minutes or gamma irradiation

Key Construction Characteristics

• GD-4 glass fiber prefilter removes larger particulates, protecting the downstream membrane
• Dual Luer-Lok/Luer Slip design ensures universal compatibility with all syringe types
• Reinforced housing withstands 87psi burst pressure for secure high-pressure filtration
• 100µl holdup volume minimizes sample loss when processing precious or limited volumes

GD17167 syringe filters deliver consistent 32ml/min flow rates through an optimized 4.08cm² active membrane area, accelerating your sterile filtration workflows without compromising retention efficiency. Glass fiber prefiltration significantly extends membrane life to achieve 50ml throughput capacity, maximizing your cost-effectiveness while maintaining 43.51psi bubble point specifications. Autoclave compatibility at 121°C provides flexibility for your applications requiring certified sterility, transforming nonsterile units into validated sterile filters for critical pharmaceutical and biotechnology processes.

For more information about chemical and material compatibility, please review our Chemical Compatibility Chart.

Bubble Point (psi)

43.51psi

Burst Pressure (psi)

87psi

Connection Type

Luer-Lok/ Luer Slip

Diameter

25mm

Filtration Area

4.08cm²

Flow Rate

32ml

Holdup Volume

100μL

Material

Polyethersulfone (PES)

Maximum Operating Pressure

87psi

Maximum Operating Temperature (°C)

60°C

Membrane Thickness (µm)

100-160μm

Pack Count

100

Pore Size (µm)

0.22

Prefilter (Yes/No)

Yes

Prefilter Material

GF+GF+PP

Sterility

Nonsterile

Sterilization

Autoclave 121°C for 30min/ gamma 25kGy

Volume Throughput (ml)

50ml

Wetability

Hydrophilic

• Sterile filtration - Complete bacterial removal from heat-sensitive biologics, vaccines, and pharmaceuticals
• Cell culture media - Sterilization of serum, growth factors, and supplements after autoclave treatment
• Protein solutions - Bacterial removal from antibodies, enzymes, and recombinant proteins, preserving activity
• HPLC mobile phases - Sterilizing filtration of buffers and solvents, preventing microbial column contamination
• Tissue culture reagents - Preparing sterile PBS, trypsin, and media components for aseptic cell culture
• Pharmaceutical QC - Terminal sterilization of parenteral solutions and injectable drug formulations
