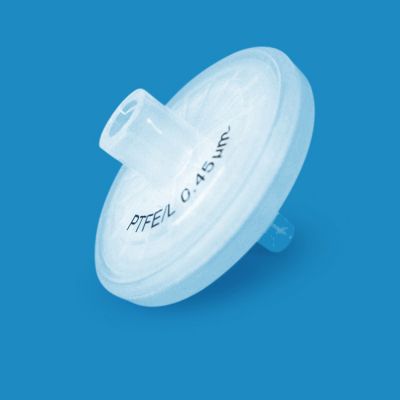

Tisch Scientific PTFE Syringe Filters, 0.45 µm, 25 mm, 100/Pk - SF17168
Tisch Scientific's product lineup extends from filtration membranes to devices and the consumable supplies laboratories use daily. A syringe filter's small hold-up volume limits sample loss, a meaningful difference when working with a limited or precious sample. Treated PTFE wets directly with aqueous samples while keeping solvent resistance while resisting attack from the harshest process chemistries and clarifies solvent streams at the rated pore size. The polypropylene housing routes flow to minimize backpressure in service and stands firm against aqueous acids, bases, and alcohols during regular handling. For routine sample preparation across many methods, each analytical run starts with a consistent, particle-free sample without added hardware or a cleaning step.
Membrane Characteristics
- UL 94 V-0 rating confirms the highest self-extinguishing classification
- Node-fibril microstructure resists compaction under sustained operating pressure
- Non-fibrous, fully synthetic structure sheds no fibers into filtrate
- Solvent tolerance includes full-strength tetrahydrofuran and chlorinated solvents such as dichloromethane
- Aqueous buffers and HPLC mobile phases wet the hydrophilic surface instantly
Housing Characteristics
- Burst pressure rating provides a wide safety margin above the rated maximum operating pressure
- Polypropylene density near 0.90 g/cm3 keeps housing weight low relative to denser engineering plastics
- Inert polyolefin wall contributes minimal sample adsorption to the filtrate
- Optimized internal geometry minimizes backpressure in service
A particulate-laden aqueous sample makes the rest of your preparation unpredictable. Consistent aqueous clarification clears particulates without slowing your bench routine the same way every time you run it. Request details on payment terms or standing-order arrangements for your routine filtration purchases.
Sterilization Guidance
Standard autoclave cycles at 121°C for 30 minutes prepare the device for sterile workflows.
For more information about chemical compatibility, please review our Chemical Compatibility Chart.
- Bubble Point (psi)
- 14.5psi (IPA)
- Color
- White
- Connection Type
- Luer-Lok/Luer Slip
- Construction
- PP
- Diameter
- 25mm
- Extractables
- Very Low
- Filtration Area
- 4.91cm²
- Flow Rate
- 20ml
- Grid (Yes/No)
- No
- Grid Color
- 100
- Holdup Volume
- 100μL
- Incompatibility
- 4.91cm²
- Material
- Polytetrafluoroethylene (PTFE)
- Maximum Operating Pressure
- 14.5psi
- Maximum Operating Temperature (°C)
- 60°C
- Membrane Thickness (µm)
- 160-260μm
- Pack Count
- 100/pk
- pH Range
- 1-14pH
- Pore Size (µm)
- 0.45
- Prefilter (Yes/No)
- Yes
- Prefilter Material
- PP
- Protein Binding (Low/ Med/ High)
- Low
- Sterility
- Nonsterile
- Sterilization
- Autoclave @ 121°C for 30min
- Support Material
- PP
- Volume Throughput (ml)
- 50ml
- Weight
- 0.52
- Wettability
- Hydrophobic
- Spirits Congener Analysis - Clarifies distilled spirits samples ahead of GC analysis, protecting columns from residue during congener profiling.
- Trace Metals Analysis - PTFE's low metal-extractable profile clarifies acid-digested samples for clean, low-background ICP-MS and ICP-OES results.
- Extractables Testing - Clarifies packaging material organic solvent extracts ahead of LC-MS analysis, keeping background low for leachable detection.
- Dissolution Testing - Stops the dissolution reaction and clarifies samples, with low API binding for accurate potency quantitation.
- Battery Electrolyte Prep - Clarifies lithium-ion battery electrolyte in carbonate solvents ahead of GC-MS purity and impurity analysis.
- Cryogenic Fluids - Delivers consistent performance across extreme temperature ranges, filtering cryogenic liquids with dependable, reliable results.
