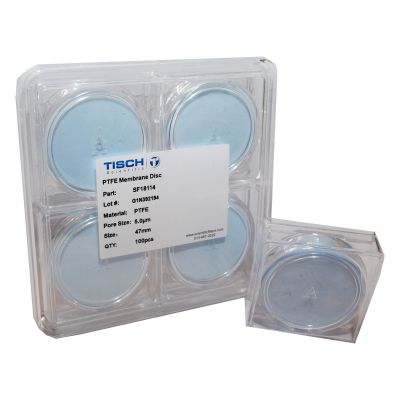

Thumbnail Filmstrip of PTFE Membrane Filters (w/out Substrate), 5.00 um, 47mm, Nonsterile, 100/Pk Images
Product Details
The makeup of this PTFE membrane filter makes them resistant to acidic solvents, alkali solvents, and chemically caustic material. The carbon-fluorine bonds in the membrane are incredibly strong, making them generally non-reactive and useful in an array of applications. Because they are hydrophobic by design, they can even filter aqueous aerosols effectively.
These replacement filters come in packs of 100 and can be used as replacements or refills for your 47 mm syringe filter housings, saving you money over time.
Product Uses & Filtration Applications
- Organic Solvents with Strong Chemical Causticity
- Strong Acidity Solvent Filtrations
- Alcohols
- Alkali Solvent Filtration
- Aromatics
- Venting Applications
Product Support Documents
Need Help Determining the Appropriate Membrane Filter to Use?
Check Out These Additional Resources:
| PRODUCT SPEC TABLE | |
|---|---|
| Tisch Product Code | SF18114 |
| Filtration Area | 17.3 cm^2 |
| Wettability | Hydrophobic |
| Pore Size | 5.0 µm |
| Filter Size | 47 mm |
| Filter Thickness | 140-190 µm |
| Filter Substrate | None |
| Maximum Operating Temperature | 130° C |
| Bubble Point | 0.015 MPa |
| Burst Pressure | 87 psi |
| Flow Rate | 100 ml/min @ 10 psi |
| Sterility | Nonsterile |
| Sterilization | Autoclave: 121° C for 30 Minutes Gamma: 5kg, for 8 Hours |
| Pack Size | 100 |
| Incompatible With | Aqueous Samples Without Rewetting |
- Bubble Point
- 2.18psi.
- Burst Pressure
- 87psi.
- Diameter
- 47mm
- Filtration Area
- 17.3cm²
- Flow Rate
- 100ml/ min @ 10psi.
- Incompatibility
- Aqueous samples without rewetting
- Material
- Polytetrafluoroethylene (PTFE)
- Maximum Operating Temperature
- 130°C
- Membrane Thickness
- 140-190um
- Pack Count
- 100
- Pore Size (µm)
- 5.0
- Sterility
- Nonsterile
- Sterilization
- Autoclave: 121°C for 30 minutes/ Gamma: 5kg, for 8 hours
- Wetability
- Hydrophobic
