PTFE Syringe Filters, 0.22 um, 13mm, Luer-Lok/Luer Slip, Nonsterile, 100/Pk

Thumbnail Filmstrip of PTFE Syringe Filters, 0.22 um, 13mm, Luer-Lok/Luer Slip, Nonsterile, 100/Pk Images

    Purchase PTFE Syringe Filters, 0.22 um, 13mm, Luer-Lok/Luer Slip, Nonsterile, 100/Pk

    PTFE Syringe Filters, 0.22 um, 13mm, Luer-Lok/Luer Slip, Nonsterile, 100/Pk
    Tisch SKU: SF14466

    $100.99
    In Stock

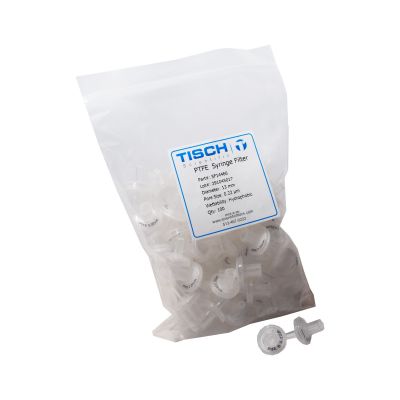

    Tisch Scientific PTFE Syringe Filters, 0.22 µm, 13 mm, 100/Pk - SF14466

    Tisch Scientific reduces per-unit costs for laboratories that place blanket purchase agreements or large-quantity orders. A syringe filter with a hydrophobic vent-rated membrane keeps gas and vent lines free of microbial ingress. The hydrophobic PTFE membrane suits gas, vent, and solvent-stream filtration while withstanding aggressive organics that degrade other media and delivers sterilizing-grade gas and vent filtration. Polypropylene construction maintains a low-dead-volume internal flow path and leaves no seam for sample to bypass the membrane. No separate sterilization cycle is needed when the gas path already runs through a validated sterile-grade membrane.

    Membrane Characteristics

    • High membrane porosity, 70 to 80 percent void volume, delivers high flow at low pressure
    • Low non-specific protein binding preserves recovery of biomolecules and therapeutic proteins during filtration
    • Ionic and metallic extractable levels stay very low
    • Hydrofluoric acid resistance holds even in fully acid-digested samples
    • Chemical resistance spans the full pH 1 to 14 range

    Housing Characteristics

    • Optimized internal geometry minimizes backpressure in service
    • Medical-grade polypropylene with broad chemical compatibility
    • The seal formed against the membrane blocks bypass at rated operating pressure
    • Minimal ionic background from the polypropylene housing supports ion chromatography and trace-metal ICP-MS sample preparation

    Particulates left in your organic solvents and reagents carry downstream into the step that depends on a clean feed. Reliable solvent prefiltration keeps a stray particulate from carrying into your downstream work from reaction mixtures and crude extracts through further processing. Request blanket-order pricing and paperwork support for your routine filtration purchases.

    Sterilization Guidance

    Standard autoclave cycles at 121°C for 30 minutes prepare the device for sterile workflows.

    For more information about chemical compatibility, please review our Chemical Compatibility Chart.

    Bubble Point (psi)
    17.4(absolute ethyl alcohol )
    Burst Pressure (psi)
    87psi.
    Connection Type
    Luer-Lok/Luer Slip
    Construction
    PP
    Diameter
    13mm
    Filtration Area
    1.09cm²
    Flow Rate
    5.5ml
    Holdup Volume
    10μL
    Incompatibility
    Aqueous samples without rewetting
    Material
    Polytetrafluoroethylene (PTFE)
    Maximum Operating Pressure
    87psi
    Maximum Operating Temperature (°C)
    60°C
    Membrane Thickness (µm)
    80-140μm
    Pack Count
    100
    Pore Size (µm)
    0.22
    Sterility
    NonSterile
    Sterilization
    Autoclave 121°C for 30min/ Gamma 25kGy
    Volume Throughput (ml)
    10ml
    Weight
    0.19
    Wettability
    Hydrophobic
    • Aggressive Solvents - Clarifies chlorinated hydrocarbons and aromatics without membrane degradation, delivering pure filtrate quality consistently.
    • Spirits Congener Analysis - Clarifies distilled spirits samples ahead of GC analysis, protecting columns from residue during congener profiling.
    • Extractables Testing - Clarifies packaging material organic solvent extracts ahead of LC-MS analysis, keeping background low for leachable detection.
    • Photoresist Filtration - Clarifies photoresist solutions in organic casting solvent ahead of spin-coating, reducing particulate defect risk.
    • Dissolution Testing - Stops the dissolution reaction and clarifies samples, with low API binding for accurate potency quantitation.
    • Trace Metals Analysis - PTFE's low metal-extractable profile clarifies acid-digested samples for clean, low-background ICP-MS and ICP-OES results.
