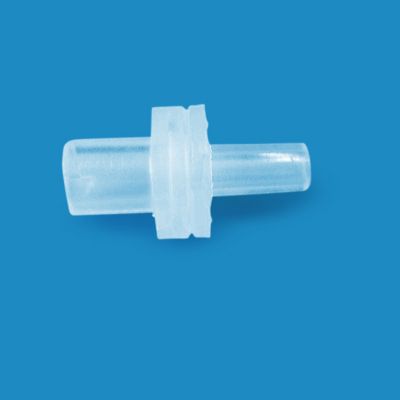

PTFE Syringe Filters, 0.22 um, 4mm, Luer-Lok/Luer Slip, Nonsterile, 200/Pk SKU: SF17504

Polytetrafluoroethylene (PTFE) Syringe Filters - SF17504

Featuring hydrophobic PTFE membrane technology with 0.22µm pore size for sterile filtration of microscale samples in aggressive solvent systems. Ultra-compact 4mm diameter filters minimize sample loss with just 1µl holdup volume while ensuring complete bacterial removal. Polypropylene housing construction maintains chemical compatibility at pressures up to 87psi for reliable microscale sterilization.

Key Polytetrafluoroethylene (PTFE) Membrane Characteristics

• Hydrophobic membrane design provides sterile filtration of organic solvents, acids, and bases without degradation
• Sterile-grade 0.22µm pore size ensures complete removal of bacteria and microorganisms from precious samples
• Superior chemical resistance from strong carbon-fluorine bonds withstands aggressive solvents and reagents
• Membrane thickness of 80-140µm optimizes retention efficiency while maintaining adequate flow for small volumes
• Autoclavable at 121°C for 30 minutes or gamma sterilizable at 25kGy for validated aseptic applications

Key Construction Characteristics

• Polypropylene housing ensures broad chemical compatibility with organic and inorganic solvents
• Microscale 4mm diameter with 0.125cm² filtration area, ideal for ultra-low volume applications
• Industry-leading 1µl holdup volume maximizes recovery of expensive or irreplaceable samples
• Luer-Lok/Luer Slip dual connection compatibility works with precision syringes and microvolume systems

SF17504 filters excel in your most precious sample applications with an industry-leading 1µl holdup volume that virtually eliminates sample loss. Flow rate of 0.7ml accommodates careful, controlled filtration while the 1ml throughput capacity handles multiple microscale preparations. Bubble point verification at 17.4psi using absolute ethyl alcohol confirms membrane integrity for your critical sterile filtration requirements.

For more information about chemical and material compatibility, please review our Chemical Compatibility Chart.

Bubble Point (psi)

17.4psi

Burst Pressure (psi)

87psi.

Connection Type

Luer-Lok/ Luer Slip

Construction

PP

Diameter

4mm

Filtration Area

0.125cm²

Flow Rate

0.7ml

Holdup Volume

1μL

Incompatibility

Aqueous samples without rewetting

Material

Polytetrafluoroethylene (PTFE)

Maximum Operating Pressure

87psi

Maximum Operating Temperature (°C)

60°C

Membrane Thickness (µm)

80-140μm

Pack Count

200

Pore Size (µm)

0.22

Sterility

NonSterile

Sterilization

Autoclave 121°C for 30min/ Gamma 25kGy

Volume Throughput (ml)

1ml

Wetability

Hydrophobic

• Microscale Sterile Filtration - Removes bacteria from microliters of precious cell culture reagents and growth factors
• NMR Sample Preparation - Sterilizes deuterated solvents and expensive labeled compounds for spectroscopy studies
• Microbiological Testing - Prepares sterile blanks and controls for antimicrobial susceptibility testing protocols
• High-Value API Processing - Sterilizes costly active pharmaceutical ingredients, minimizing material loss
• Mass Spectrometry Prep - Removes bacterial contamination from LC-MS samples, preserving column performance
• Protein Crystal Solutions - Sterilizes crystallization buffers and protein solutions for structural biology
