PVDF Syringe Filters, 0.22 um, 25mm, Luer-Lok/Luer Slip, Nonsterile, 100/Pk

Thumbnail Filmstrip of PVDF Syringe Filters, 0.22 um, 25mm, Luer-Lok/Luer Slip, Nonsterile, 100/Pk Images

    Purchase PVDF Syringe Filters, 0.22 um, 25mm, Luer-Lok/Luer Slip, Nonsterile, 100/Pk

    PVDF Syringe Filters, 0.22 um, 25mm, Luer-Lok/Luer Slip, Nonsterile, 100/Pk
    Tisch SKU: SF14456

    $126.95
    In Stock

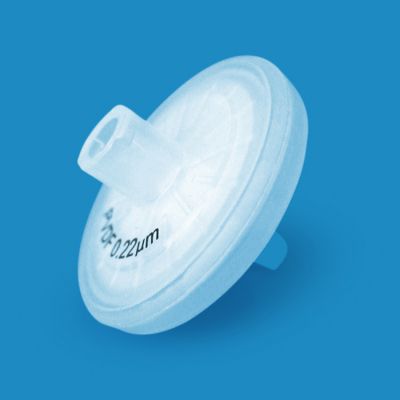

    Tisch Scientific PVDF Syringe Filters, 0.22 µm, 25 mm, 100/Pk - SF14456

    Tisch Scientific's representatives greet every caller with patience, whatever brings them to the phone. Each hydrophobic vent-rated filter carries manufacturer bacterial retention testing built into the design, letting a vent line stay in continuous service without repeating that testing on site between uses. Hydrophobic PVDF passes gases freely while holding back water and tolerates common chromatography solvents without degradation. The polypropylene housing presses snugly against the membrane during the pass while routing flow to minimize backpressure in service and stands firm against aqueous acids, bases, and alcohols during regular handling. No separate sterilization cycle is needed when the gas path already runs through a validated sterile-grade membrane.

    Membrane Characteristics

    • Hydrochloric, dilute nitric, and up to 90% sulfuric acid cause no attack
    • Hydrophobic surface chemistry gives PVDF a water contact angle above 100 degrees, blocking wetting
    • Organic solvent resistance beats PES or nylon at comparable pore size
    • Autoclave sterilization cycles leave pore structure and flow performance intact
    • Low ionic extractables preserve baseline stability in conductivity-based ion chromatography detection

    Housing Characteristics

    • Polypropylene density near 0.90 g/cm3 keeps housing weight low relative to denser engineering plastics
    • Inert polyolefin wall contributes minimal sample adsorption to the filtrate
    • Resists stress cracking from aqueous salt and buffer solutions
    • Minimal intrinsic autofluorescence from the polypropylene housing supports background-sensitive fluorescence-based assay work downstream

    A filter that softens or swells in your solvent fails you mid-run, batch after batch. Solvent-stream filtration handles the solvents and reagents your methods rely on so your filter holds its integrity through the run. Request available pack sizes and lead times across this filtration line's membrane options from the Tisch Scientific team.

    Sterilization Guidance

    Customer autoclave compatibility at 121°C accommodates in-lab sterilization timing.

    For more information about chemical compatibility, please review our Chemical Compatibility Chart.

    Bubble Point (psi)
    14.5psi
    Connection Type
    Luer-Lok/Luer Slip
    Diameter
    25mm
    Filtration Area
    4.08cm²
    Flow Rate
    20ml
    Holdup Volume
    100μL
    Material
    Polyvinylidene Fluoride (PVDF)
    Maximum Operating Pressure
    87psi
    Maximum Operating Temperature (°C)
    60°C
    Membrane Thickness (µm)
    100-130μm
    Pack Count
    100
    Pore Size (µm)
    0.22
    Prefilter (Yes/No)
    Yes
    Prefilter Material
    PP
    Sterility
    Nonsterile
    Sterilization
    Autoclave at 121°C for 30min/ gamma 25kGy
    Volume Throughput (ml)
    50ml
    Weight
    0.52
    Wettability
    Hydrophobic
    • Bioreactor Vent Protection - Repels water while venting bioreactors and fermenters, keeping process air and gases moving freely through the line.
    • Organic Solvent Filtration - Wets readily with alcohols and mild hydrocarbons, delivering dependable clarification of organic solvent samples.
    • Dissolution Testing - Removes undissolved particles from timed USP 711 dissolution aliquots, preventing skewed potency and release results.
    • Compressed Gas Filtration - Passes nitrogen and other inert gases freely while holding back moisture, protecting instruments and gas lines.
    • Sterile Tank Venting - Blocks aqueous ingress on storage tanks and carboys, letting sterile air and gas pass through the vent line.
    • Culture Vessel Filling - Equalizes pressure in sealed culture vessels by venting displaced air, keeping fill and drain lines fully closed.
